Swarovski Z5 2.4-12×50 BT 4W Reticle


Available on backorder

SKU: 59771-1 Categories: , Tag:

Swarovski Z5 2.4-12×50 BT 4W Reticle (Includes Free Carbon Fiber Nylon Throw Lever and Level)

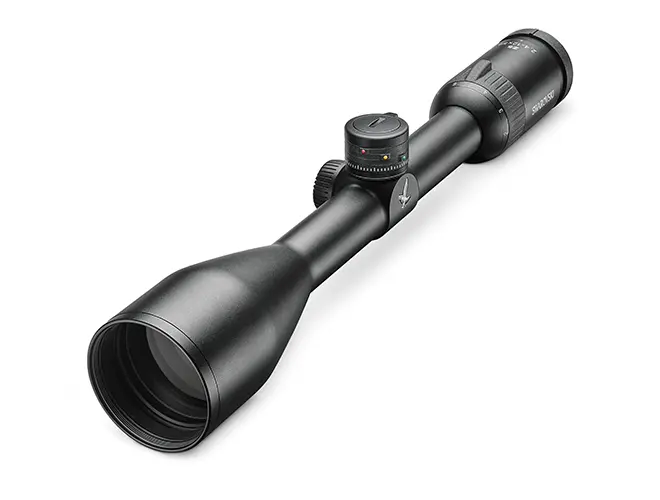

The Swarovski Z5 2.4-12×50 BT 4W Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. Its high-luminosity optics mean you can also hunt at dawn and dusk and in poor light. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.


Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at [email protected]


Swarovski Z5 2.4-12×50 BT 4W Reticle Technical Data



Effective objective lens diameter (mm) 23-50
Exit pupil diameter (mm) 10-4.1
Exit pupil distance (mm) (Eye relief) 95
Field of view (ft/100 yds / m/100 m) 45.9-9 / 15.3-3
Field of view (degrees) 8.7-1.75
Field of view, apparent (degrees) 21.5
Dioptric compensation (dpt)
-3 to +2
Light transmission (%) 92
Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

90/50 / 2.5/1.4

Objective filter thread

M 52×0.75

Length (in / mm)
13.1 / 334
Weight (oz / g)
16.2 / 460
Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)



Swarovski Z5 2.4-12×50 BT 4W Reticle Downloads

Instruction Manuals

Instruction manual – Z5

Technical Data

Technical Data – Z5





Check out our other precision optics here

Weight 36 oz
Dimensions 18 × 5 × 3 in
