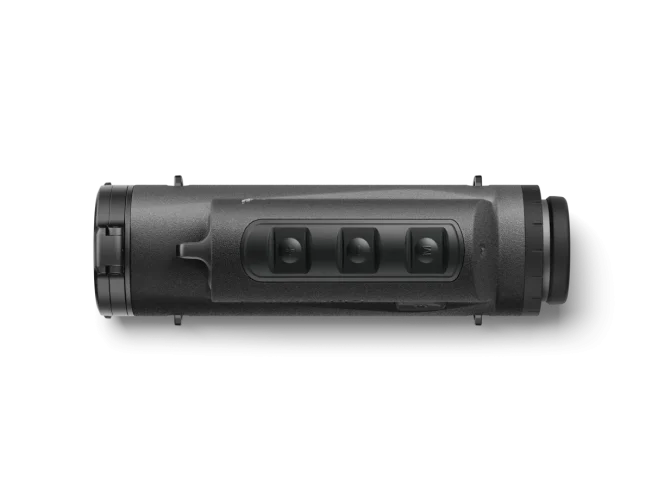

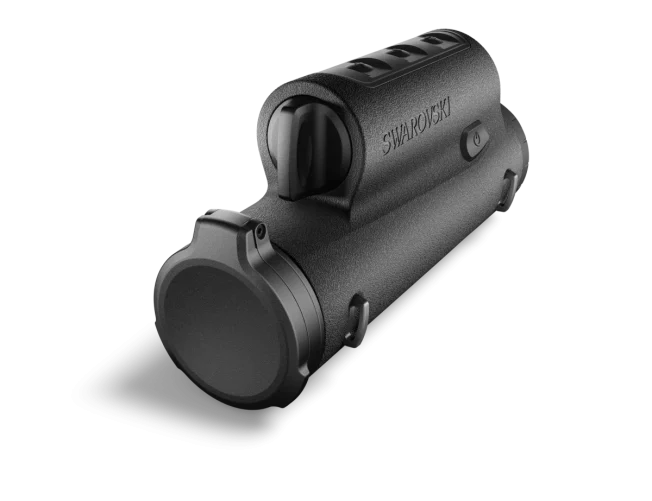

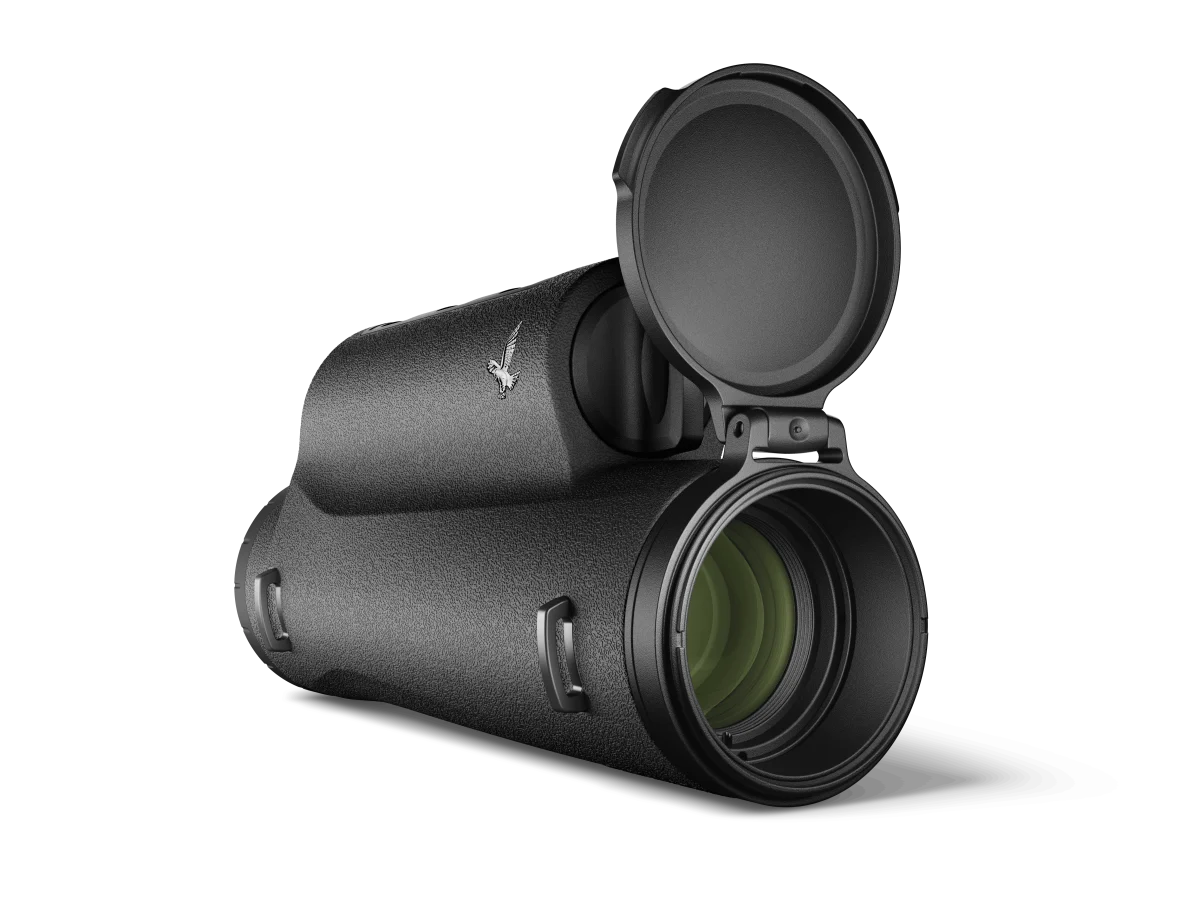

tM 35

Featuring state-of-the-art thermal imaging technology, the tM 35 impresses both as a thermal imaging hand-held device and as a thermal imaging clip-on device. The proven, energy-saving SWAROLIGHT automatic switch-on/off timer and intelligent brightness adjustment ensure it is ready for use at all times. Depending on the hunting situation, detail recognition can be enhanced by switching between White Hot and Black Hot mode. The tM 35 can be operated intuitively in darkness and is compatible with SWAROVSKI OPTIK rifle scopes from the dS, Z8i, Z6i, Z5(i), and Z3 series.

USA/Canada: only 1x magnification available

Legislation governing firearms and hunting sets out special conditions for the purchase, ownership, and use of thermal imaging devices.

Please always check national provisions and regulations before purchase or use.

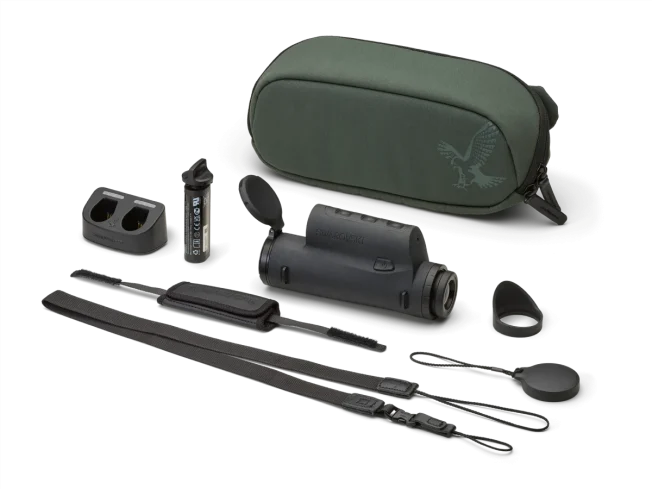

In The Box

  • RB tM 35 rechargeable battery
  • RBC battery charger
  • Micro-USB charging cable
  • Field bag
  • Carrying strap
  • Hand strap
  • Eyepiece cover
  • Integrated objective lens cover



tM 35 Specs


Field of view: 32.7×26.2 ft/100 yds
Field of view with eye glasses (°): 100 %

Optical magnification: 1x

Digital magnification: 1x
Objective lens: 35 mm/f1.1

Size & Weight

Length in In.: 6.7 in

Width in In.: 2.1 in

Height in IN.: 3.1 in
Weight: 18 oz
Connection thread: M44x0.75

Environment & Conditions

Functional temperature: +5 to +122 °F
Storage temperature: -22 to +158 °F
IP protection class: IP68


Refresh rate (Hz): 60Hz
Screen type: AMOLED
Screen resolution (pixels): 2560×2048
Sensor type: Uncooled VOx microbolometer
Sensor resolution (pixels): 320×256
Pixel size (µm): 12 µm
Start up time (s): 2 s


Battery: Li-lon 3000 mAh
Battery-operating-time: 7 h
Weight 80 oz
Dimensions 14 × 4 × 4 in
