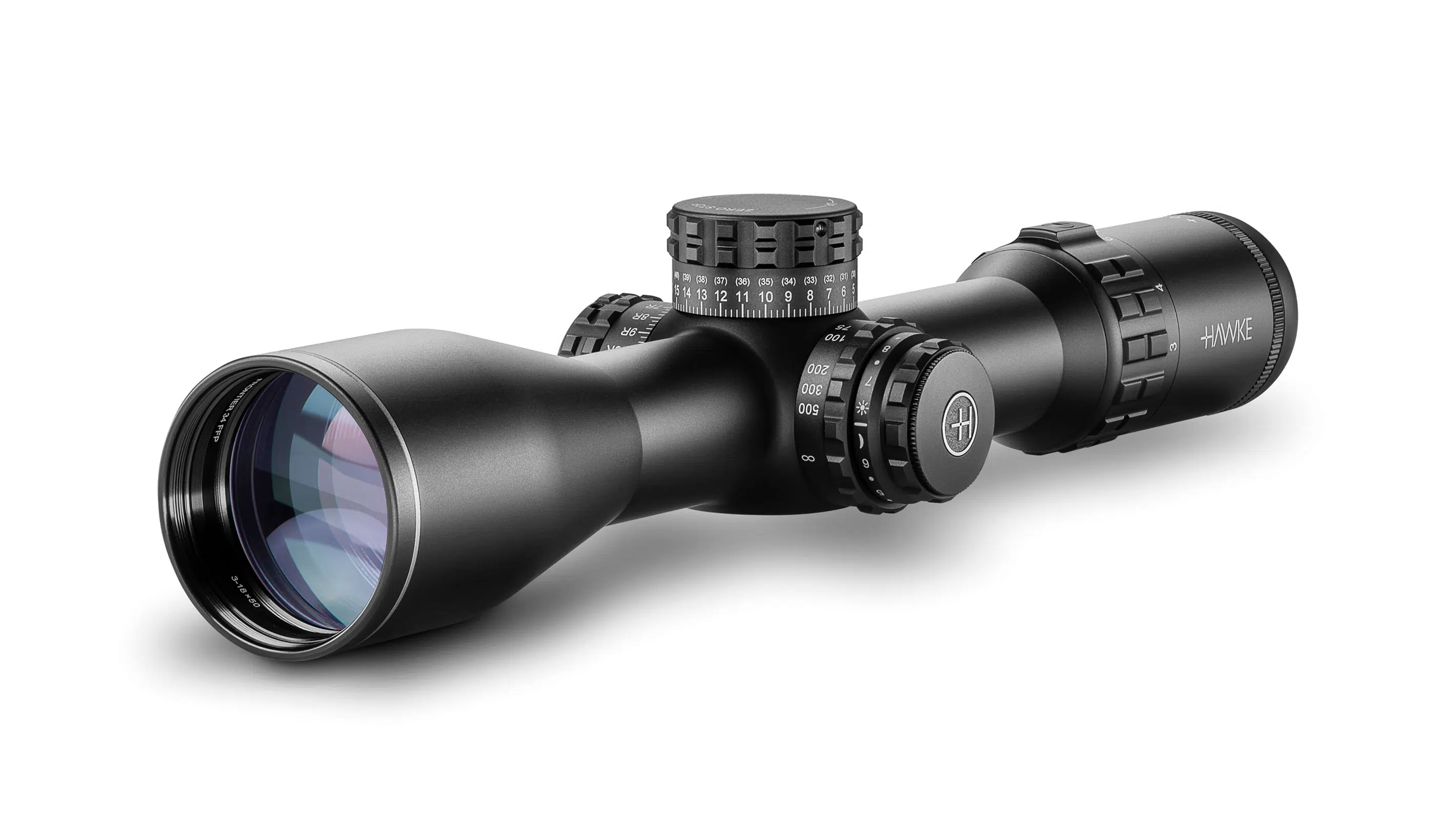

FRONTIER 34 FFP 3-18×50 MOA PRO EXT RETICLE

$1,169.99

SKU: 18621 Categories: , , Tag:

FRONTIER 34 FFP 3-18x50 MOA PRO EXT RETICLE

FRONTIER 34 FFP 3-18×50 MOA PRO EXT RETICLE, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting. Features Hawke’s lifetime no fault warranty. Includes Free Shipping!

Features

  • Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
  • First Focal Plane (FFP)
  • 34mm Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Wide Angle FOV
  • High Volume Eyebox
  • 102mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 21 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring
  • Supplied With Professional Metal Flip-Up Covers.

FRONTIER 34 FFP 3-18×50 MOA PRO EXT RETICLE

Length:



337mm



13.3″



Weight:



790g



27.9oz



Eye relief:



102mm



4″



Focus/Parallax – Fixed

14m – ∞



15yds – ∞



Field of View:



12.5 – 2.1m @100m



37.5 – 6.3ft @100yds



Exit Pupil:



16.7-2.8mm



0.66-0.11″



Chassis



34mm Mono-tube



Optical System



5-25x



Objective



50mm



Illumination



Red (11 Levels with Off Positions In-between)



Reticle



MOA Pro Ext



Elevation Increment



1⁄4 MOA



Elevation Adjustment Range:



158 MOA



Windage Increment



1⁄4 MOA



Windage Adjustment Range



87 MOA



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 21 Layers



Power Selector Style



Removable Zoom Lever



Focal Plane



First Focal Plane (FFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turrets





FFP MOA Pro Ext. Reticle (18x)

The FFP MOA Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings extending out to 60 MOA of holdover, the FFP MOA Pro Ext. is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are MOA spaced and offer 1 MOA and 0.5 MOA brackets for range finding. Every fourth MOA spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

Instructions

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
