CONQUEST V6 5-30×50 ZBR-1 Reticle (#91) – Ext Turrets

$2,399.99

Available on backorder

SKU: 522251 9991 070-1 Categories: , , , Tag:

CONQUEST V6 5-30×50 ZBR-1 Reticle (#91) – Ext Turrets

Includes Free Pro Series Throw Lever and Billet Level

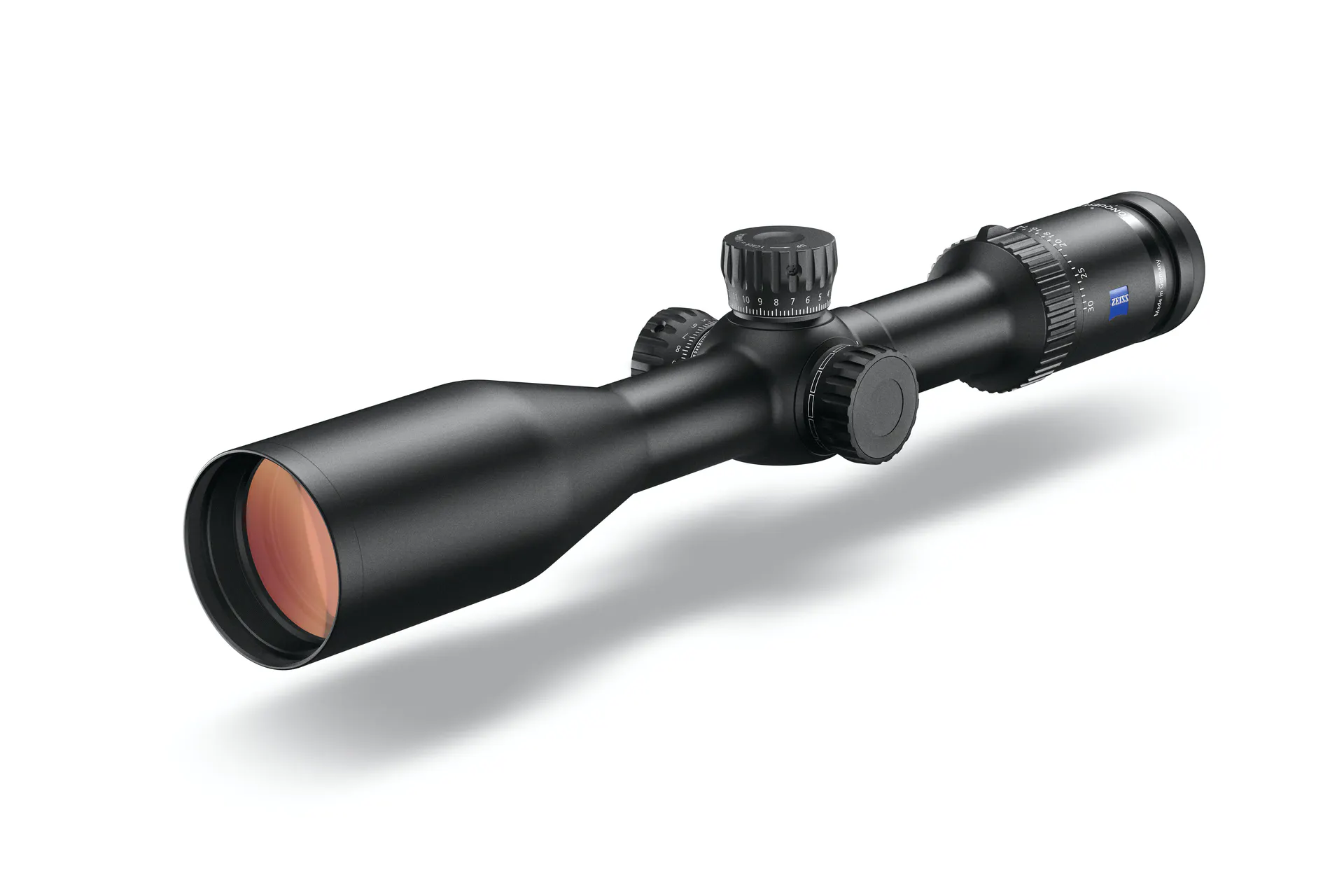

The Conquest V6 5 – 30 × 50 offers an exceptionally high magnification range in a 30mm main tube. This is designed primarily for long-range hunting and shooting on any rifle platform. The wide zoom range guarantees maximum flexibility. A further advantage is its lightweight construction and lean design. Select from two second focal plane MOA-based smart reticles designs: ZBR-1 or ZMOA-1. This model boasts 62 MOA of elevation adjustment – assuring you that your hunting and shooting requirements at distance will be met.

With the Conquest® V6 riflescope, ZEISS has once again set a new standard in image quality and mechanical precision. Three models cover all facets hunting and shooting – including long-range. Whether for sitting, stalking game, or long-range applications – the Conquest V6 with 6x zoom is engineered to impress in any environment or scenario.

It combines legendary ZEISS quality and technology with field-proven design into one robust package that’s within every serious hunter’s range. With 92% light transmission, T* (T star) six-layer mult-coatings, FL (fluoride) lenses throughout, and a wide field of view, the ZEISS Conquest V6 delivers incredibly high image quality and clarity, even in the harshest conditions and most challenging environments. The sophisticated optical package is protected by an aluminum housing built for whatever nature throws at it. Rain, snow, dust, dirt, and fingerprints are easily addressed by the LotuTec protective lens coating.

For the hunter who demands versatility and uncompromised long-range capability, the ZEISS Conquest V6 is the scope that proves distance is nothing.

CONQUEST V6 5-30×50 ZBR-1 Reticle (#91) – Ext Turrets Features

92% Light Transmission

SCHOTT fluoride glass for a bright viewing image and optimum target resolution, and the finest resolution of details, even in the harshest conditions and most challenging environment.

The world’s finest illuminated dot

The secret behind the precision of ZEISS riflescopes is their ultra-fine illuminated dot and its extremely low target coverage. With only a fraction of the thickness of a human hair, the fibre optics system delivers the world’s finest illuminated dot – 3.3-millimetre target coverage at 100 metres is the breathtaking result (V8 & V6 @20x). Pure precision for the smallest targets and the greatest distances.

ZEISS T* Coating

ZEISS T* coating is a guarantee of the brilliant, high-contrast images­­ which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.

A clear view, whatever the weather

There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec®. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.

CONQUEST V6 5-30×50 ZBR-1 Reticle (#91) – Ext Turrets Specs

Performance

Magnification

5 – 30 ×

Effective lens diameter

47.3 – 50 mm

Light transmission

92%

Exit pupil diameter

9.5 – 1.7 mm

Twilight factor

14.1 – 38.7

Field of view at 100 m (yds)

7.4 – 1.2 m (22 – 4 ft)

Objective viewing angle

4.2° – 0.7°

Diopter adjustment range

+ 2.0 | − 3.0 dpt

Eye relief

90 mm (3.54 “)

Parallax setting

Square adjustment range at 100 m

180 × 100 m

Adjustment per click at 100 m

1/4 MoA (0.7 cm /100 m)

Centre tube diameter

30 mm

Eyepiece tube diameter

45.5 mm

Objective tube diameter

56 mm

Features

LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar

Physical

Operating temperature

− 25°C | + 50°C (− 13°F | + 122°F)

Length

380 mm (15.0 “)

Weight (without inner rail)

740 g (26.1 oz)

Weight (with inner rail)

CONQUEST V6 5-30×50 ZBR-1 Reticle (#91) – Ext Turrets Reticle Info

ZBR-1 | Reticle 91Non-illuminated

The ZEISS ZBR ballistic reticle is located in the second image plane and has a subtension of 1 MOA (ZBR-1) between the tick marks at the respective riflescope’s reference magnification. The tick marks extend in the shape of a Christmas tree over the lower half of the field of view. As such, they are suitable for quickly and simultaneously compensating for bullet drop and correcting wind drift.  The ZEISS Hunting app can be used to quickly and precisely determine both values for practically any ammunition, and also displays the distance values in a visual depiction of the reticle.

Datasheet

Instructions

Weight 64 oz
Dimensions 16 × 4 × 4 in
