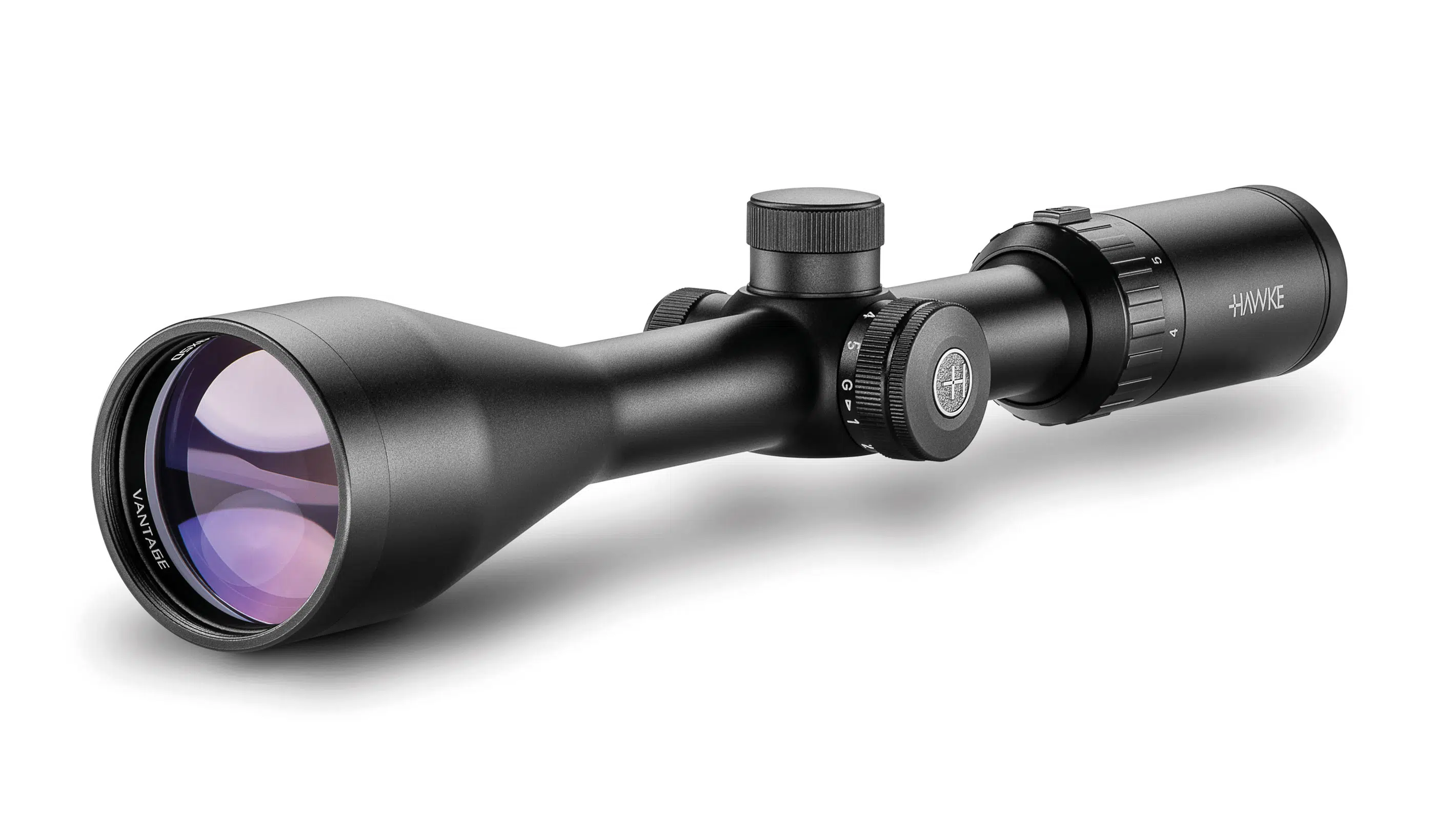

VANTAGE IR 3-9x50 L4A DOT RETICLE IR

Get a better view on your target each and every time you’re in the field with the Hawke VANTAGE IR 3-9×50 L4A DOT RETICLE IR mounted on your firearm of choice. Featuring red and green illumination for great visibility in low light situations, these Rifle Scopes developed by the specialists at Hawke Sport Optics offer five levels of brightness for easy adjustment even when your target is against a dark background.

The glass etched reticle is easily seen thanks to the fully multi-coated optics, which provide exceptional light transmission and clarity with the Hawke Sport Optics Vantage 3-9×50 IR Scope. A high torque zoom ring stands up to heavy recoil for flawless shooting with the Hawke Sport Optics Vantage 3-9×50 IR Rugged Riflescope.



Features

• Capped Low-Profile Turrets
• 1 Inch Mono-Tube Chassis
• Adjustable Objective For Parallax Correction
• Illumination
• 11 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All caliber rated.

Hawke No-Fault Lifetime Warranty.



VANTAGE IR 3-9x50 L4A DOT RETICLE IR Specs

Length:	343mm	13.5″
Weight:	498g	17.6oz
Eye relief:	89mm	3.5″
Focus/Parallax – Fixed	91m	100yds
Field of View:	11.2-3.6m @100m	33.6-11ft @100yds
Exit Pupil:	17-6mm	0.8-0.2″

Chassis	1″ Mono-tube
Optical System	3-9x
Objective	50mm
Illumination	Red / Green
Reticle	L4A Dot

Elevation Increment	1⁄4 MOA
Elevation Adjustment Range:	90 MOA
Windage Increment	1⁄4 MOA
Windage Adjustment Range	90 MOA

Material	Aluminum
Ocular Type	Fast Focus
Lens Coating	Fully Multi-Coated – 11 Layers
Power Selector Style	Knurled Posi-Grip
Focal Plane	Second Focal Plane (SFP)
Turret Caps	Yes
Turret Type	Low Profile

L4A Dot Reticle

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
