Thermion XM50 5.5-22×42

$4,179.99

Available on backorder

SKU: PL76526 Categories: , , Tag:

Thermion XM50 5.5-22×42

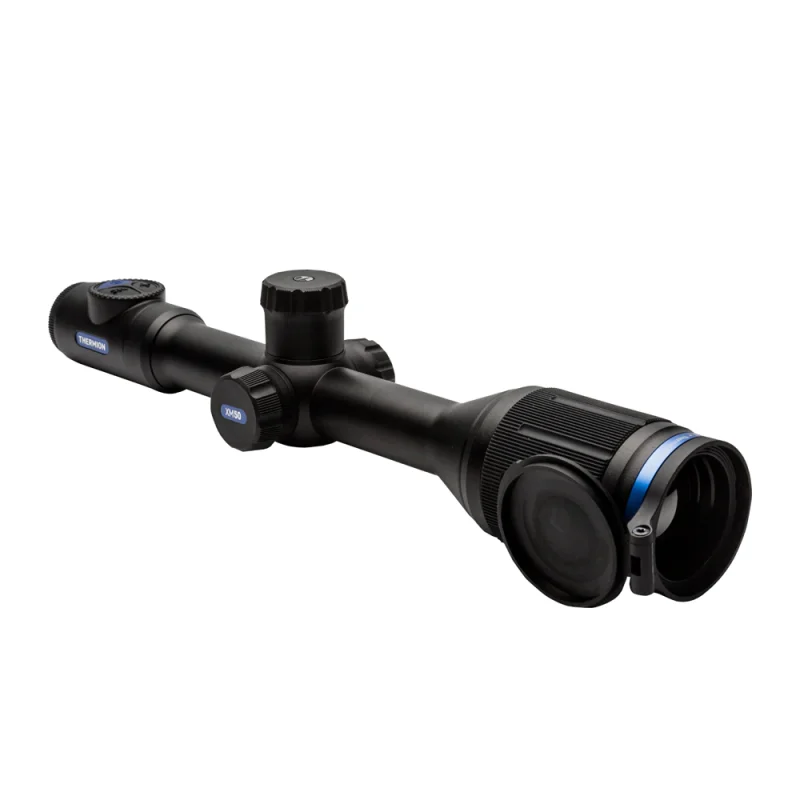

While the Thermion XM50 may look like a run-of-the-mill riflescope, all similarities end with a 30mm tube and traditional-style, all-metal (magnesium-alloy) optic housing. The Thermion XM50 is an advanced thermal imaging riflescope with 320×240 microbolometer resolution, 12μm pixel pitch, 5.5-22x magnification, a full-color 1024×768 HD AMOLED display and a jaw-dropping heat-detection range of up to 2,500 yards. Additional Thermion XM50 features include picture-in-picture, 8 color palettes, 15 reticles in up to 4 colors—black, red, white and green, integrated still image and video recording with audio on 16gb of internal storage, Wi-Fi with Pulsar’s Stream Vision app, 50Hz frame rate for fluid motion imaging and an onboard rechargeable battery pack. The Thermion XM50 is IPX7 waterproof-rated (submersible in up to 3 feet of water for up to 30 minutes), weighs 31.7 ounces and is recoil rated to handle .375 H&H, 9.3×64 and 12-gauge.



Battery Used

  • Type:  APS2
  • Quantity: 1

Product Downloads

Thermion XM50 5.5-22×42 Features

  • 320×240 resolution – 12um pixel pitch core
  • 2500 yd detection range
  • 4x digital zoom – continuous zoom and stepped zoom
  • Picture in picture digital zoom
  • Built-in-recording
  • Steam Vision app connects scoe to smart device
  • External power supply adaptable
  • 5 rifle profiles with 50 zero saves
  • 13 variable electronic reticles
  • One-shot zeroing with freeze function
  • Color viewing modes
  • High resolution AMOLED display
  • Stadiametric rangefinder
  • Rock / forest / identification viewing modes
  • Manual / automatic /semi automatic calibration modes
  • Defective pixel repair feature

Thermion XM50 5.5-22×42 Specs

Type of Microbolometer Uncooled Microbolometer
Frame Rate, Hz 50
Microbolometer Resolution, pixels 320 x 240
Spectral Sensitivity, µm 8-14
Pixel Pitch, µm 12
Display Type AMOLED
Display Resolution, pix. 1024 x 768
Integrated video recorder Yes
Micro USB Socket Power/Data
Operating modes Rocks, Forest, Identification
Defective Pixel Repair Option Yes
Integrated Wi-Fi Yes
Stream Vision support Yes
Magnification 5.5 – 22 x
Digital Zoom 2x / 4x
Lens Focus, mm 50
Relative aperture, D/f’ 1:1.2
Field of View, degrees 4.4
Field of view, [email protected] 7.7
Field of view, [email protected] 23.1
Minimum focusing distance, ft/m 16 / 5
Eye Relief 2 / 50 in / mm
Diopter Adjustment -4 / +3
Focusing Type of Distance Objective
Range of Detection 2500 / 2300 yd / m
Power Supply 3.0 – 4.2 V
Battery Type APS2
External Power Supply 5V – USB
Click value (MOA) .25 1 Click = MOA
Elevation Range of Adjustment 48 MOA
Windage Range of Adjustment 48 MOA
Lens Material Germanium
Type of Mount for Attachment of Additional Accessories Weaver/picatinny rail
Operating Temperature -13 to 122 / -25 to +50 F / C
Reticle, Type 10+ variable electronic reticles
Waterproof Yes
Calibration Manual, Automatic, Semi-automatic
Level of Protection (acc. to IEC 60529) IP67 100% dustproof and submergible to 1m for 1 hour
Recoil Rating .375 H&H Max caliber
Length 15.8 / 402 in / mm
Width 3.1 / 78 in / mm
Height 2.5 / 64 in / mm
Battery life, (with video out off), hours 5+
Body Material Aluminum
Weight, oz 31.75
Diameter, Lens, mm 42

Shop Pulsar’s Other Models Here

Weight 70 oz
Dimensions 16 × 6 × 6 in
