SIDEWINDER 30 SF 6-24×56

$599.99

SKU: N/A Categories: , , Tag:

SIDEWINDER 30 SF 6-24x56

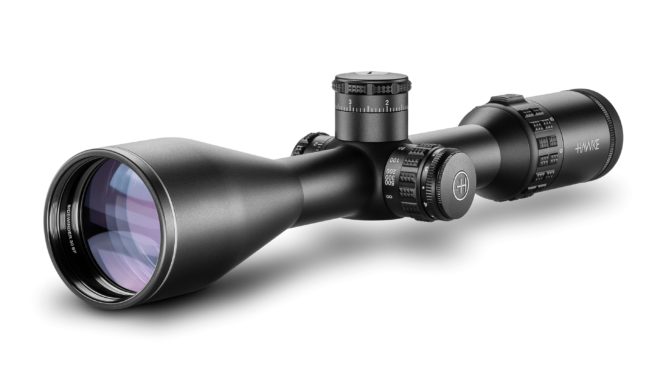

SIDEWINDER 30 SF 6-24×56 boasts a stunning 24 ultra-wide field of view with generous 4 inch (100mm) eye relief. This projects a high volume ‘eye-box’ image that passes through the scope, bringing you closer to the action than ever before. Improved sharpness and clarity provides incredible accuracy and unrivaled down range performance. 18 layer multiple lens coatings allow for the intense light transmission required from top optical devices. High grade, low dispersion crown glass is used throughout to create crisp first and second focal plane optical systems that have minimal field curvature and distortion.

SIDEWINDER 30 SF 6-24×56 Features

  • Resettable Locking Turrets With Witness Window
  • 30mm Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Side Wheel – Index-Matched (Removable)
  • Ultra-Wide Angle 24° FOV
  • High Volume Eyebox
  • 100mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 18 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring

SIDEWINDER 30 SF 6-24×56 Specs

Length:



363mm



14.3″



Weight:



775g



27.3oz



Eye relief:



102mm



4″



Focus/Parallax – Fixed 9m – ∞



10yds – ∞



Field of View:



7.1-1.8m @100m



21.3-5.4ft @100yds



Exit Pupil:



9.3-2.3mm



0.37-0.09″



Chassis



30mm Mono-tube



Optical System



6-24x



Objective



56mm



Illumination



Red (6 Levels of Brightness –  Off Positions In-between)



Reticle



20x Half Mil\SR Pro II



Elevation Increment



1⁄10 MRAD



Elevation Adjustment Range:



20 MRAD



Windage Increment



1⁄10 MRAD



Windage Adjustment Range



20 MRAD



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 18 Layers



Power Selector Style



Knurled Posi-Grip with Removable Zoom Lever



Focal Plane



Second Focal Plane (SFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turrets



20x Half Mil Reticle

Accurate mil spacing on 20x magnification. With half mil spaced markings out beyond 5 mil in all directions, the 20x Half Mil is a versatile reticle that provides aim points no matter how extreme the conditions.

A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which mil spacing you’re aiming with. Outer posts are segmented into half mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.



20x Half Mil

SR Pro II Reticle

Working with your bullet’s trajectory the SR Pro II reticle, exclusively from Hawke, is guaranteed to provide usable aim points whatever your caliber. The reticle features an illuminated central aim point, holdover aim points with windage bars and dots, hollow posts that don’t obstruct your view and range finding brackets.

The holdover aim points on the lower post of the reticle are designed with gaps increasing in size. This more closely represents the fall of a bullet’s trajectory; the further the bullet travels, the faster the bullet falls.

When on 8x magnification, the hollow bars at the edge of the reticle are divided into segments that each represent 3.6 inches at 100 yards (this is equal to 100mm at 100m, also known as 1 MRAD).



SR Pro II

Instructions

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
Reticle

20x Half Mil, SR Pro II
