Razor HD Gen II-E 1-6×24 -VMR-2 (MOA) Reticle

$1,399.00

Available on backorder

SKU: RZR-16010 Categories: , , Tag:

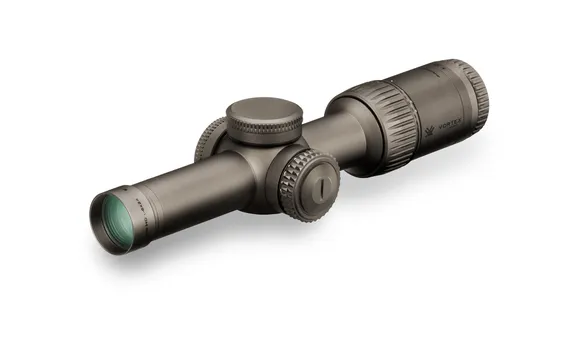

Razor HD Gen II-E 1-6×24 -VMR-2 (MOA) Reticle

At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6×24, the Razor HD Gen II-E 1-6×24 -VMR-2 (MOA) Reticle model allows for quicker transitions between targets and less arm fatigue during long days on the range. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission and edge-to-edge sharpness. True 1x on the low end is complimented by an ultra-forgiving eyebox with generous eye relief for a heads-up-display-like sight picture and a daylight bright illuminated center dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminum tube, the Razor HD Gen II-E 1-6×24 features ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.

Razor HD Gen II-E 1-6×24 Dimensions (in inches)
Product Dimensions Image
Lengths
L1 L2 L3 L4 L5 L6
10.1 2.50 1.5 5.67 0.85 3.6
Heights
H1 H2
1.29 1.81

Razor HD Gen II-E 1-6×24 -VMR-2 (MOA) Reticle — Specs

Magnification: 1-6x
Objective Lens Diameter: 24 mm
Eye Relief: 4 inches
Field of View: 115.2-20.5 ft/100yds
Tube Size: 30 mm
Turret Style: Low Capped
Adjustment Graduation: 1/2 MOA
Travel Per Rotation: 50 MOA
Max Elevation Adjustment: 150 MOA
Max Windage Adjustment: 150 MOA
Parallax Setting: 100 yards
Length: 10.1 inches
Weight: 21.5 oz
Reticle Manual (PDF) Download
Product Manual (PDF) Download
Parts Diagram (PDF) Download

Razor HD Gen II-E 1-6×24 -VMR-2 (MOA) Reticle — Features

APO System: Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses: Optimize image sharpness and brightness from edge to edge.
HD Lens Elements: Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR Plus Fully Multi-Coated: Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Plasma Tech: Cutting edge coating application process provides unparalleled coating durability and performance
Second Focal Plane Reticle: Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot: Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
Locking Illumination: Locks illumination at preferred setting.
Illuminated Reticle: Provides precise aiming under low-light conditions
Tube Size: 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof: Rugged construction withstands recoil and impact.
Hard Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
ArmorTek:  Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Large Diameter Turrets: Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.
Friction Reduction System: Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
Turret Screws: Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
Erector Tube System: Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and al
Fast Focus Eyepiece: Allows quick and easy reticle focusing.
Locking Side Illumination: Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Reticle

image of reticle

VMR-2 (MOA)

Simple, intuitive and fast. The Vortex-exclusive JM-1 BDC reticle with illuminated center dot (designed with input from world-renowned competitive shooter, instructor and gunsmith Jerry Miculek) facilitates rapid, accurate, shooting at distances from point blank to 600 yards.

Subtension detail for Razor HD Gen II-E riflescope with VMR-2 MOA reticle.
