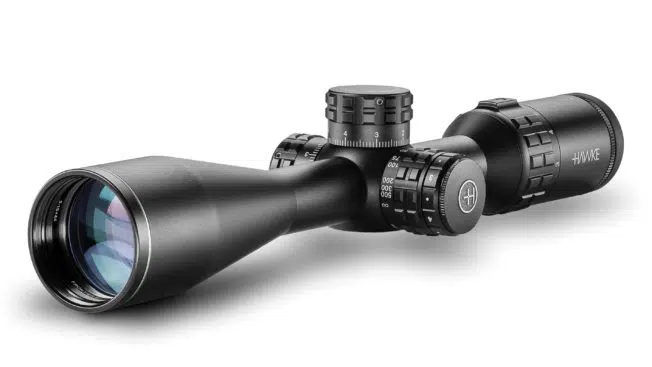

FRONTIER SF 3-15×44 MIL PRO RETICLE

FRONTIER SF 3-15×44 MIL PRO RETICLE, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting.



FRONTIER SF 3-15×44 MIL PRO RETICLE Features

• Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
• 1 Inch Mono-Tube Chassis
• Side Focus
• Illumination
• Wide Angle FOV
• High Volume Eyebox
• 100mm Eye Relief
• Multi-LED High Intensity Reticle
• High Grade, Low Dispersion Crown Glass
• 21 Layer Fully Multi-Coated Lenses
• Zoom Magnification Throw Lever (Removable)
• Fast Focus Eyebell With Lock Ring
• Supplied With Professional Metal Flip-Up Covers.

FRONTIER SF 3-15×44 MIL PRO RETICLE Specs

Objective Lens Diameter:	44 mm
Magnification:	3 – 15 x
Reticle:	Mil Pro
Tube Diameter:	1 in
Reticle Focal Plane:	Second Focal Plane (SFP)
Exit Pupil:	2.2 – 11 mm
Battery Type:	CR2032
Battery Quantity:	1
Field of View, Linear:	37.5 – 7.5 ft at 100 yds
Eye Relief:	102 mm
Color:	Black
Weight:	584 g
Fabric/Material:	Aluminum
Length:	335 mm
Illumination Type:	LED
Illumination Color:	Red
Brightness Settings:	6
Adjustment Type:	Mil Rad
Adjustment Click Value:	0.1 Mil Rad
Adjustment Range:	21 Mil Rad
Parallax:	Side Focus
Focus Range:	10 yds to infinity
Lens Material:	Glass
Optical Coating:	Fully Multi-Coated
Weather Resistance:	Yes
Water Resistance Level:	Waterproof
Shockproof:	Yes
Fogproof:	Yes
Finish:	Matte



Mil Pro (10x) Reticle

Accurate mil spacing on 10x magnification. With half Mil spaced markings extending out to 10 Mil of holdover, the Mil Pro (10x) is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

When on 10x magnification, the Mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD.
