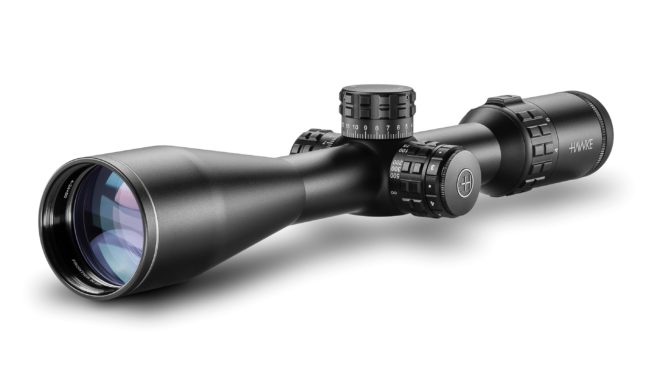

FRONTIER 30 SF 4-24×50 LR DOT RETICLE

$849.99

SKU: 18430-2 Categories: , , Tag:

FRONTIER 30 SF 4-24x50 LR DOT RETICLE

FRONTIER 30 SF 4-24×50 LR DOT RETICLE, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting. Features Hawke’s lifetime no fault warranty. Includes Free Shipping!

Features

  • Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
  • 30mm Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Wide Angle FOV
  • High Volume Eyebox
  • 100mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 21 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring
  • Supplied With Professional Metal Flip-Up Covers.

FRONTIER 30 SF 4-24×50 LR DOT RETICLE Specs

Length:



369mm



14.5″



Weight:



662g



23.4oz



Eye relief:



102mm



4″



Focus/Parallax – Fixed

14m – ∞



15yds – ∞



Field of View:



9.4-1.6m @100m



28.2-4.8ft @100yds



Exit Pupil:



12.5-2.1mm



0.49-0.08″



Chassis



30mm Mono-tube



Optical System



6x



Objective



50mm



Illumination



Red



Reticle



LR Dot



Elevation Increment



1⁄4 MOA



Elevation Adjustment Range:



75 MOA



Windage Increment



1⁄4 MOA



Windage Adjustment Range



75 MOA



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 21 Layers



Power Selector Style



Removable Zoom Lever



Focal Plane



Second Focal Plane (SFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turrets



LR Dot Reticle

The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry.

This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 16x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.

Instructions

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
