AIRMAX 30 SF COMPACT 4-16×44 AMX IR RETICLE

From: $429.99

SKU: 13210 Categories: , , Tag:

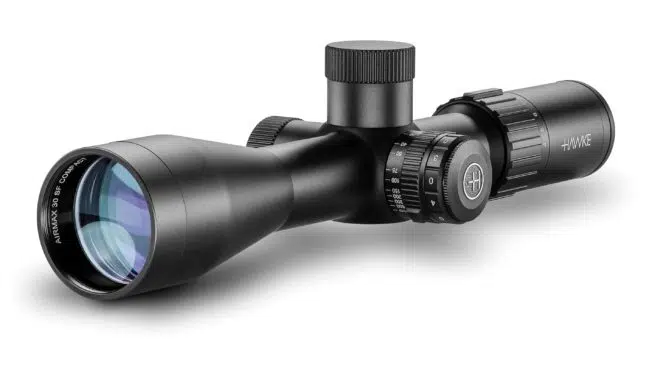

AIRMAX 30 SF COMPACT 4-16×44 AMX IR RETICLE

The AIRMAX 30 SF COMPACT 4-16×44 AMX IR RETICLE Rifle Scope features and benefits that make it perfect for serious airgun shooters. All Hawke Optics Rifle Scopes feature the AMX reticle, which is perfect for quickly acquiring moving targets. Another benefit of the Airmax family is the wide view, which allows the shooter to see more of the target at close range. The colored glass lenses of these Rifle Scopes from Hawke Sport Optics are fully multi-coated, giving you pristine images throughout the entire scope. The Hawke Optics Airmax 4-16×44 Scope is nitrogen purged, making it water, fog, and shock proof, and the optical system utilizes MOA capped target turrets with a zeroing adjustment system. Hawke Sport Optics Airmax 4-16×44 Waterproof Rifle Scopes are for shooters who need the highest quality shooting accessories.image

Features

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns



Nitrogen purged. Shockproof. Waterproof. Fog proof.

All caliber rated.

Hawke No-Fault Lifetime Warranty.



AIRMAX 30 SF COMPACT 4-16×44 AMX IR RETICLE Specs

Length:



296mm



11.7″



Weight:



621g



21.9oz



Eye relief:



76mm



3″



Focus/Parallax – AO 9m – ∞



10yds – ∞



Field of View:





10.9 – 2.7m @100m



32.8 – 8.2ft @100yds

Exit Pupil:



11-2.8mm



0.43-0.11″



Chassis



30mm Mono-tube



Optical System



4-16x



Objective



40mm



Illumination



Red



Reticle



AMX IR



Elevation Increment



1⁄10 MRAD



Elevation Adjustment Range:



20 MRAD



Windage Increment



1⁄10 MRAD



Windage Adjustment Range



20 MRAD



Material



Aluminum



Ocular Type



Fast Focus



Lens Coating



Fully Multi-Coated – 16 Layers



Power Selector Style



Rubber Coated Posi-Grip



Focal Plane



Second Focal Plane (SFP)



Turret Caps



Yes



Turret Type



Capped Target Turrets



AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.



Instructions

Check our other precision optics options here

Weight 60 oz
Dimensions 14 × 4 × 4 in
