Description

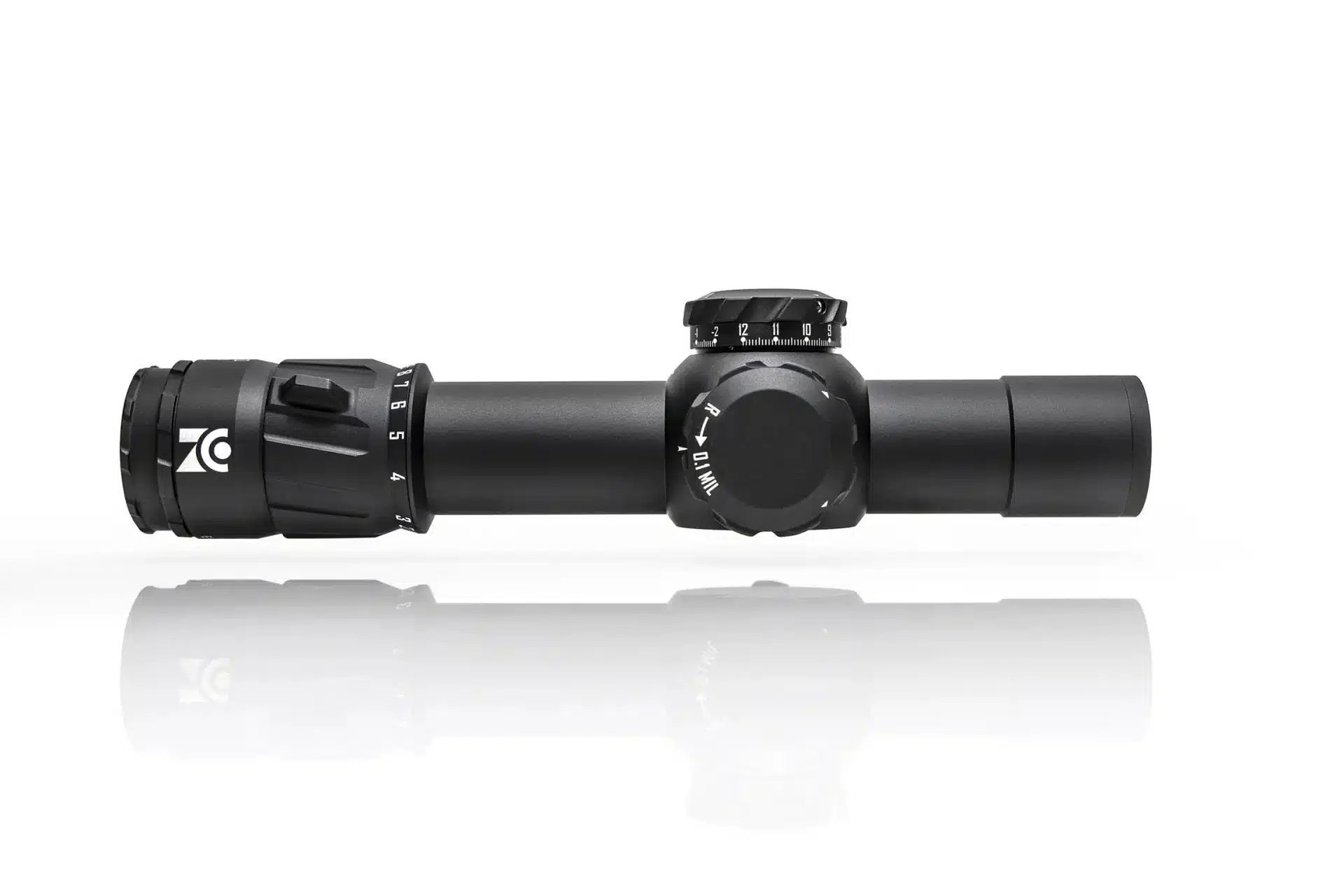

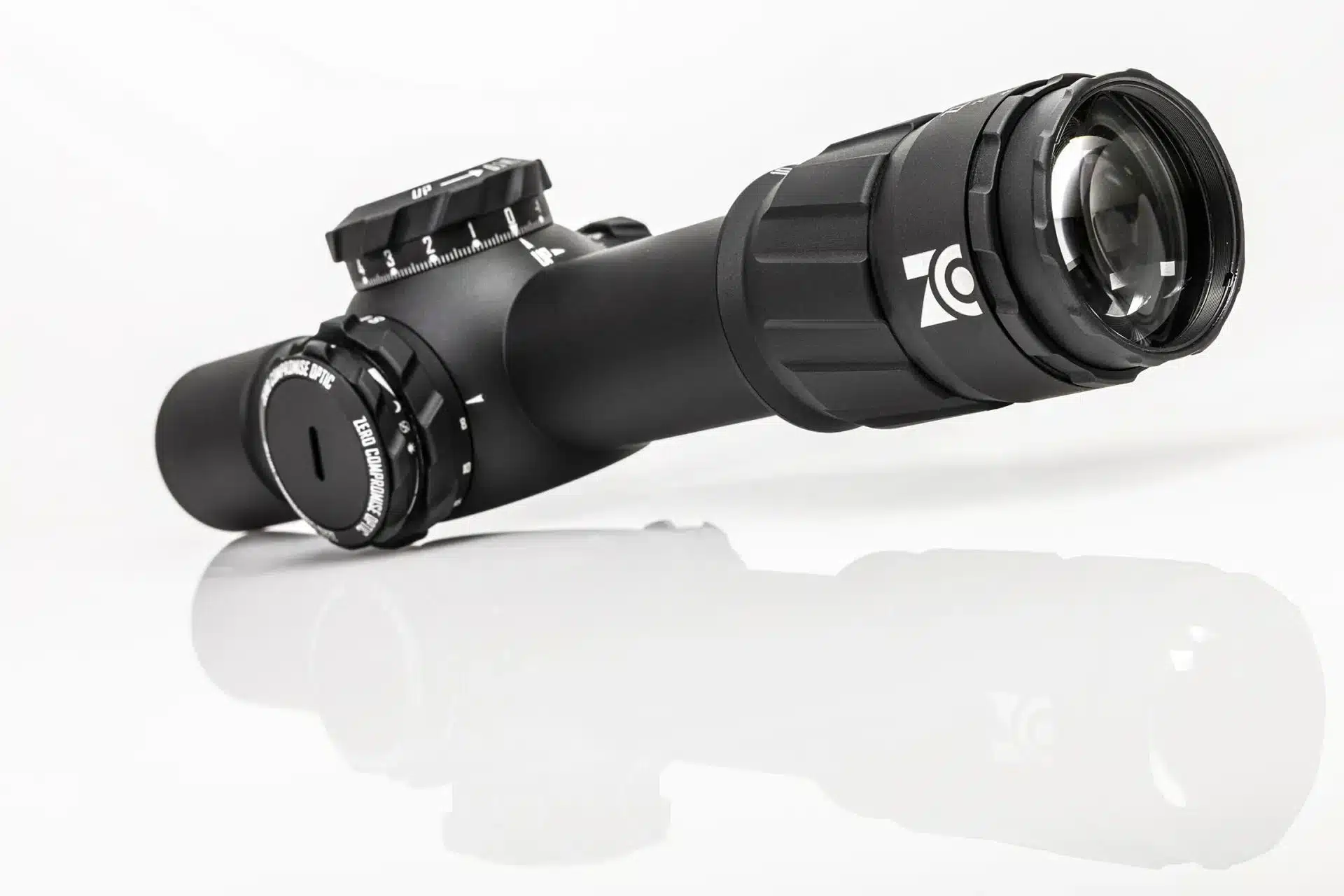

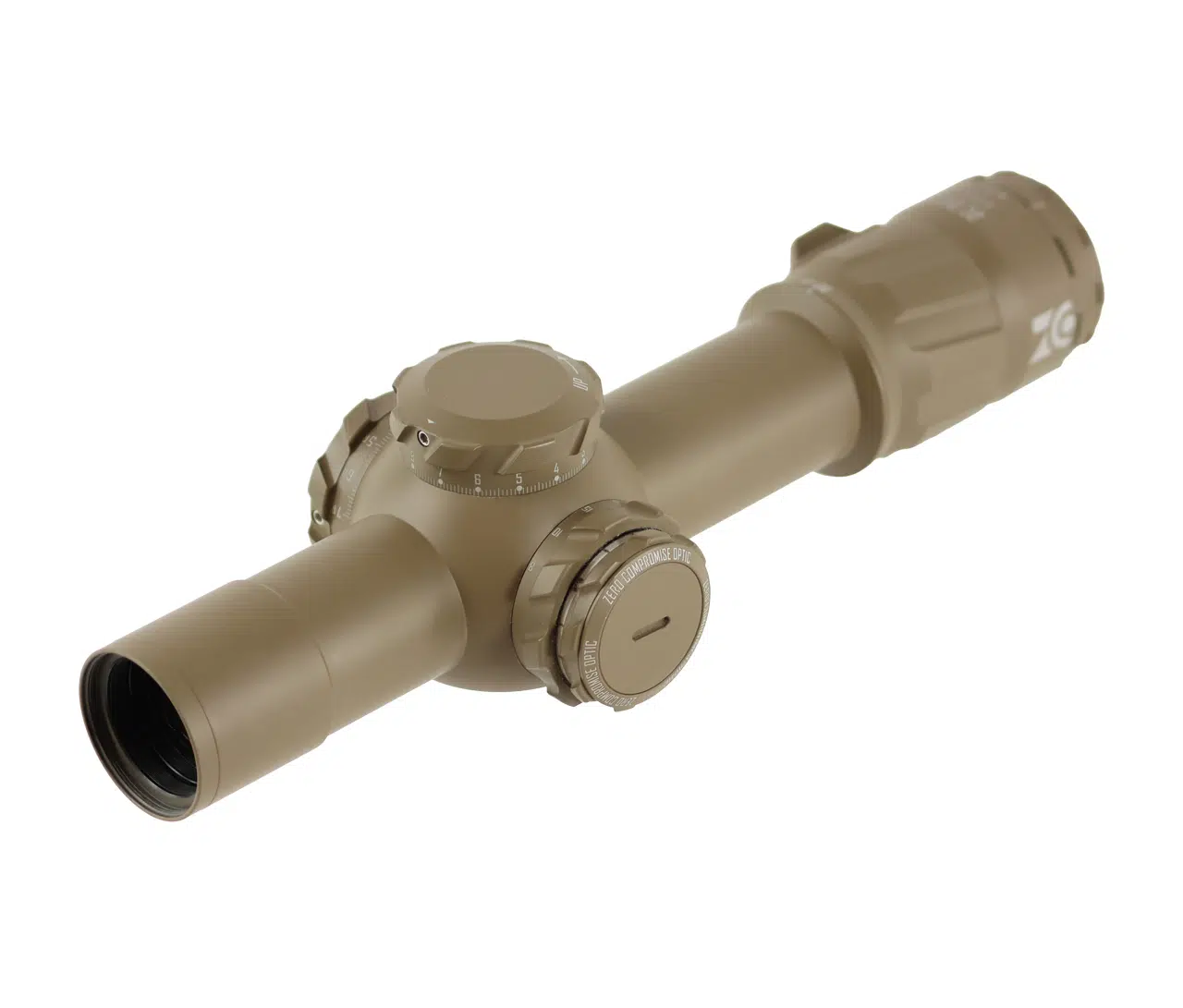

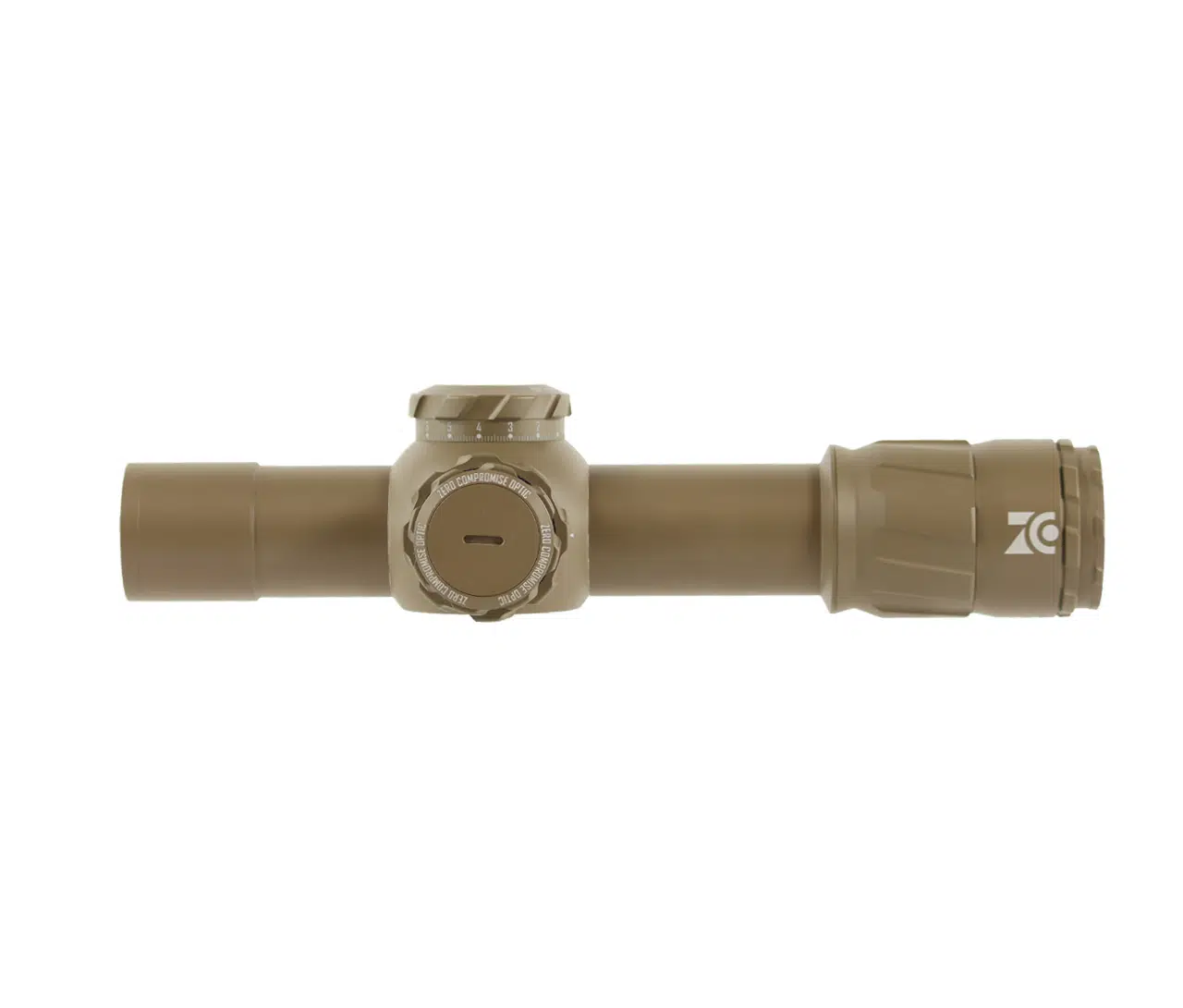

ZC210 (Includes Free Pro Series Throw Level & Billet Level)
The ZC210 is the optical solution for professional applications on DMR precision rifles used by military, law enforcement and demanding civilian use. Sports shooters in IPSC, 3Gun competitions or hunters in stalking and driven hunts can benefit from the features of the compact 2-10x riflescope due to its wide application range and high optical quality.
ZC210 Specs
- Color: Black
- Magnification: 2x – 10x
- Focal Plane: First
- Tube Diameter: 36mm
- Objective Lense Diameter: 30mm
- Eye Relief: > 90mm (3.54 inches)
- Parallax: 8 yds – ∞
- Field of View @ 100 yards: 2x/55.8ft, 20x/12ft
- Elevation Adjustment Range: 46 MRAD
- Windage Adjustment Range: 35 MRAD
- Travel Per Rotation: 12 MRAD
- Click Value: 0.1 MRAD
- Reticle: DMR
- Reticle Illumination: Yes
- Turret: Locking
- Length: 10.5 in.
- Weight: 27.2 oz.
ZC210 Reticles
DMR reticle
Our ZC210 DMR reticle was designed in cooperation with advisors from active-duty Austrian Special Forces, to enhance a shooters ability for quick and precise targeting. Featuring a fine center dot for precision shots, with a square outer box for more rapid engagements, the DMR reticle also incorporates lead marks on the bottom of the main horizontal stadia for engaging moving targets at speeds of 1, 2, and 3 m/s.* While the DMR reticle lower grid supports accurate holdovers and fast shot correction information, our ZC210 was also designed with a -2.0 mil turret feature allowing the user the ability to quickly employ a speed drop method by simply dialing back while still being able to easily return to their original zero for dialing when a more precise long-range solution is required.
- The ZC210 DMR reticle also offers illumination in key areas, with the user being able to opt between red or green illumination. This overall design ensures the ZC210 maximizes long-range capabilities while maintaining user ability for swift target acquisition.
- Using standard NATO 7.62mm
Predator reticle
The ZC210 Predator reticle is designed for rapid target engagement, using a traditional BDC layout with 100m increments up to 600m. It is optimized for a 30cm targets up to 500m and 50cm target at 600m using standard cal. 5.56/ cal. 7.62 ammunition with standard barrel length (16“-20“).
It includes leads next to the center for tracking moving targets at speeds of 6,4km/h (4mph), 9,65km/h (6 mph), and 12,9Km/h (8 mph).
The reticle hashmarks also enable ranging of 50cm wide targets from edge to edge and 25cm from center to edge, effectively combining speed and accuracy in one platform.
HTR reticle
The new Hunting/Tactical Reticle (HTR) from ZCO was specifically developed and designed for the ZC210 to provide optimal crossover features, making it well-suited for a multitude of tasks, from hunting to tactical applications for military or law enforcement.
The HTR features a large aiming circle at the center, which stands out at 2x magnification for close-range hunting or fast tactical engagements. Heavy horizontal stadia bars to the left and right help bracket the target into the aiming circle, measuring 18 inches in diameter at 200 yards. This aids in basic range estimation for open country while simultaneously providing fast and easy holds for closer engagements.
The HTR hold-over tree is minimally sized, so it essentially disappears at lower magnification yet remains highly visible for elevation and wind hold-overs and corrections at higher magnifications. The HTR lower grid dot and circle design supports accurate holdovers and fast shot correction information, making precise holds easy at 10x magnification without being overly busy or covering too much of the target area. Paired with the -2.0 MIL turret feature of the ZC210, this also gives the user the ability to quickly employ a speed drop method. The ZC210 HTR reticle also offers illumination in key areas, with the user able to choose between red or green illumination. These features of the HTR maximize the user’s ability for short-range swift target acquisition and deployment, without sacrificing exceptional long-range capabilties and performance.
