Steiner T5Xi

$1,569.99

Steiner T5Xi

Includes Free Pro Series Throw Lever and Billet Level

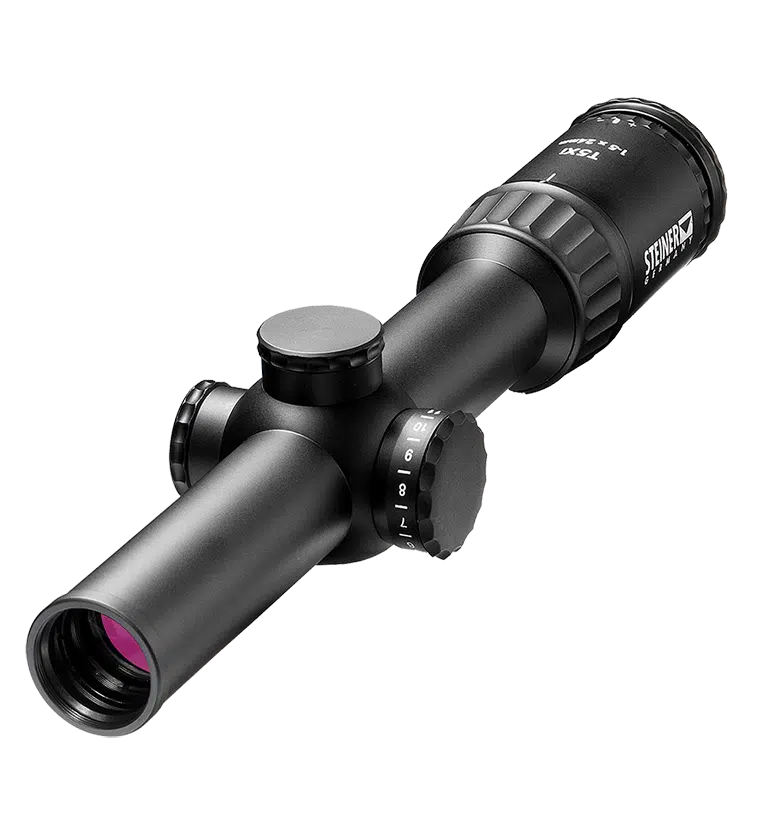

T5Xi 1-5×24

The T5Xi 1-5×24 is designed as a close-combat scope. It features a 30 mm tube, 3-Gun Tactical Reticle™ (3TR) calibrated in 5.56 or 7.62, with true 1x eyes-open capability for situational awareness and 5x power to engage distant targets. Select model 5101 for 5.56 rounds, or 5102 for 7.62 rounds.

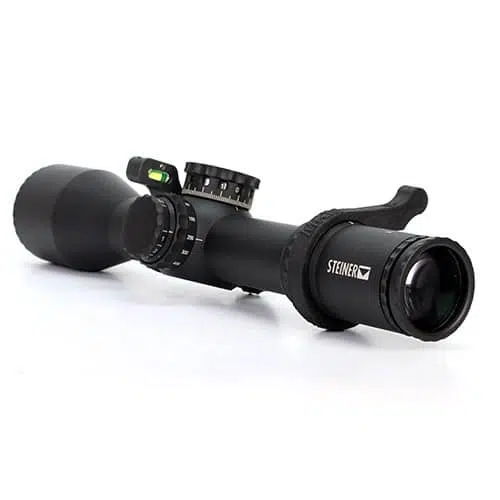

T5xi 3-15

The  T5Xi Series brings unmatched clarity, accuracy and self-assurance to any situation, from combat to competition. Precise German engineering, rugged U.S. construction, slick Never-Lost™ turrets, and new SCR™ reticle gives you the victor’s edge in close-quarter battle, mid and long-range shooting. The 3-15 T5Xi model has a more compact design and allows for parallax focus down to 25 yards.Medium range scope with 34mm tube, illuminated etched glass, front focal plane with your choice of Special Competition Reticle (SCR™) in Mil or MOA.  Second Rotation Indicator shows each mll of elevation through the indication window on the elevation turret.

T5Xi 5-25

The Steiner T5Xi Series brings unmatched clarity, accuracy and self-assurance to any situation, from combat to competition. Precise German engineering, rugged U.S. construction, slick Never-Lost™ turrets, and new SCR™ reticle gives you the victor’s edge in long-range shooting. Long-range scope with 34mm tube, illuminated etched glass featuring the new Special Competition Reticle (SCR™) and Second Rotation Indicator that shows each mll of elevation through the indication window on the elevation turret. Front focal plane.



1-5×24 Features

One-Piece 30mm Tube

Increases strength and reliability and provides greater elevation and windage adjustments for longer ranges.

Tapered, All Metal Magnification Ring

Angled so the shooter can see his magnification setting while positioned directly behind the scope.

Locking Dioptor

Prevents accidental rotation of the diopter.

Consistent Eye Relief

A generous eye box throughout the magnification range eliminates the need to reposition your eye when changing magnification.

Lens Covers

Tenebraex covers protect the lenses from dust and moisture.



3-15x50mm SCR Features

  • Intermediate to long range precision scope
  • Ideal for AR10 platforms or lightweight precision bolt guns
  • Short length
  • Constant eye relief
  • Generous eye box
  • Low profile turret system
  • Resettable zero stop
  • Innovative rotation indicator
  • Low profile side parallax adjustment

5-25x56mm SCR Features

  • Long range precision scope
  • Ideal for a long range precision bolt gun
  • Constant eye relief
  • Generous eye box
  • SCR Special Competition Reticle
  • Low profile turret system
  • Resettable zero stop
  • Innovative rotation indicator
  • Low profile side parallax adjustment



All Steiner Optics Include the Heritage Warranty

Check out the rest of our shop here

Reviews

There are no reviews yet.

Be the first to review “Steiner T5Xi”

Your email address will not be published. Required fields are marked *

Content missing

3-15 SCR Reticle



3-15 SCR MIL Specs

Field of View at 100 meters

7.3-36 ft at 100 yds

Eye Relief

3.5 to 4.3 in

Exit Pupil

3.4 – 12 mm

Length

13.1 in.

Weight

29.8 oz

Diopter Adjustment Range

-3 to +2 dpt

Elevation Adjustment Knob

Resettable Zero

Illumination Control

Illuminated Reticle with 4-day/7-night levels

Wind/Elevation Click Value

0.1 Mil Rad

Elevation Range at 100 m.

34 MILS

Wind Range at 100 m.

15 MILS

Parallax/Focus

Side Focus

Parallax/Focus Range

50 yds to infinity

Nitrogen Filled

Yes

Operating Temperature Range

-13 to +145 Fahrenheit

Lens Cap

Yes

Waterproof/Fogproof

Submersible to 33 ft.

Battery

CR2450

Warranty

Heritage Warranty



3-15 SCR MOA Specs

Field of View at 100 meters

7.3-36 ft at 100 yds

Eye Relief

3.5 to 4.3 in

Exit Pupil

3.4 – 12 mm

Length

13.1 in.

Weight

29.8 oz

Diopter Adjustment Range

-3 to +2 dpt

Elevation Adjustment Knob

Resettable Zero

Illumination Control

Illuminated Reticle with 4-day/7-night levels

Wind/Elevation Click Value

1/4 MOA

Elevation Range at 100 m.

120 MOA

Wind Range at 100 m.

54 MOA

Parallax/Focus

Side Focus

Parallax/Focus Range

50 yds to infinity

Nitrogen Filled

Yes

Operating Temperature Range

-13 to +145 Fahrenheit

Lens Cap

Yes

Waterproof/Fogproof

Submersible to 33 ft.

Battery

CR2450

Warranty

Heritage Warranty

SCR Reticle

SCR MIL Specs

Field of View at 100 meters

21.5-4.3 ft at 100 yds

Eye Relief

3.5 to 4.3 in

Exit Pupil

2.3 – 11.2 mm

Length

16.6 in

Weight

33 oz

Diopter Adjustment Range

-3 to +2 dpt

Elevation Adjustment Knob

Resettable Zero

Illumination Control

Illuminated Reticle with 4-day/7-night levels

Wind/Elevation Click Value

0.1 Mil Rad

Elevation Range at 100 m.

260 cm (26 mils)

Wind Range at 100 m.

150 cm (15 mils)

Parallax/Focus

Side Focus

Parallax/Focus Range

50 yds to infinity

Nitrogen Filled

Yes

Operating Temperature Range

-13 to +145 Fahrenheit

Lens Cap

Yes

Waterproof/Fogproof

Submersible to 33 ft.

Battery

CR2450

Warranty

Heritage Warranty



SCR MOA Specs

Field of View at 100 meters

21.5-4.3 ft at 100 yds

Eye Relief

3.5 to 4.3 in

Exit Pupil

2.3 – 11.2 mm

Length

16.6 in

Weight

33 oz

Diopter Adjustment Range

-3 to +2 dpt

Elevation Adjustment Knob

Resettable Zero

Illumination Control

Illuminated Reticle with 4-day/7-night levels

Wind/Elevation Click Value

0.1 Mil Rad

Elevation Range at 100 m.

90 MOA

Wind Range at 100 m.

54 MOA

Parallax/Focus

Side Focus

Parallax/Focus Range

50 yds to infinity

Nitrogen Filled

Yes

Operating Temperature Range

-13 to +145 Fahrenheit

Lens Cap

Yes

Waterproof/Fogproof

Submersible to 33 ft.

Battery

CR2450

Warranty

Heritage Warranty
