REVIC Optics PMR428 4.5-28×56 MOA RX1 LH Scope E2602L


Available on backorder

SKU: 99999 Categories: , Tag:

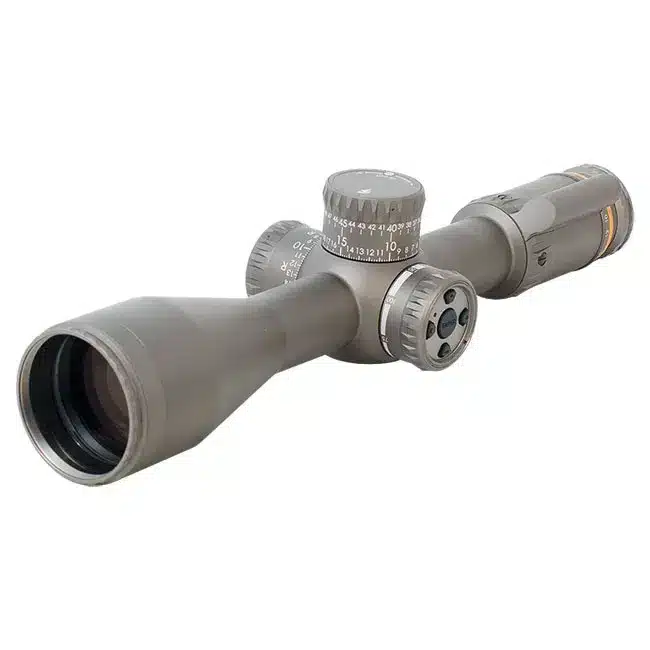

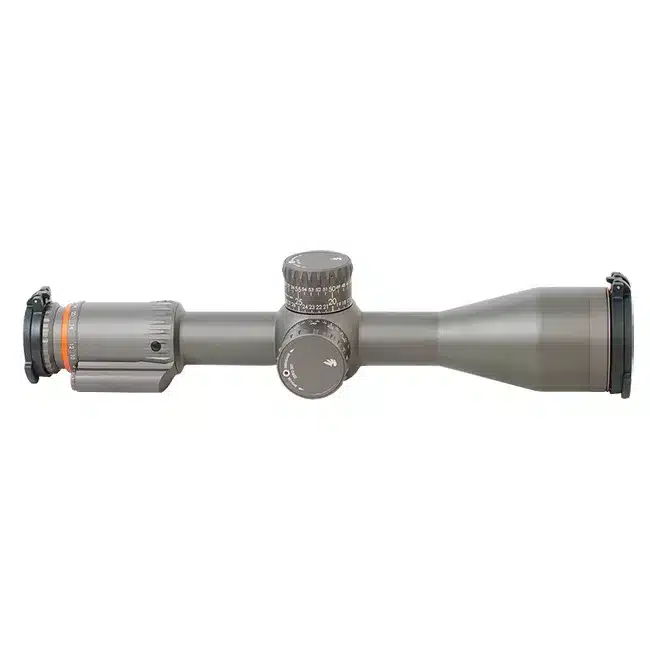

REVIC Optics PMR428 4.5-28×56 MOA RX1 LH Scope E2602L

The REVIC Optics PMR428 4.5-28×56 MOA is the next step in the evolution of riflescopes with features like Bluetooth compatibility, heads up display (HUD), and an on-board ballistics computer. REVIC Optics, a subsidiary of Gunwerks spent five years developing the PMR428 ensuring that it wouldn’t just enter the market as one of the most advanced riflescopes but as one of the most reliable too.

The heart and soul of the PMR428 is the ballistics computer with data coming from both the shooter and the scope. This highly intuitive system allows for nearly effortless long range shots, just a matter of dialing in the elevation turret to the target range. The scope itself features a suite of sensors including compass, incline, cant, pressure, temperature, and absolute positional rotary encoder. The integrated ballistics computer calculates: vertical drop, directional wind, spin drift, coriolis, and aerodynamic jump.

The user is responsible for defining the settings and providing some input via the ballistic app.


User Defined Settings
  • Timeout in 5min Increments
  • Illuminated Reticle Color
  • Illuminated Reticle Intensity
  • Display Intensity
  • Sensor Temperature Override
  • Latitude
  • Nominal Wind Speed
  • Wind Vector
  • Coriolis On/Off
  • Zero Range & Offset
  • Muzzle Velocity & Ballistic Coefficient
Ballistic App Inputs
  • Sight Height
  • Mount Angle
  • Barrel Twist and Direction
  • Muzzle Velocity
  • Ballistic Coefficient (G1, G7, CDM)
  • Bullet Weight
  • Bullet Length
  • Caliber
  • Zero Range


  • Scope Weight:47 oz.
  • Scope Length:14″
  • Magnification Range:4.5-28x
  • Scope Objective Diameter:56mm
  • Scope Tube Size / Mount:34mm
  • Parallax Adjustment:50 yds to ∞
  • Reticle Position:First Focal Plane

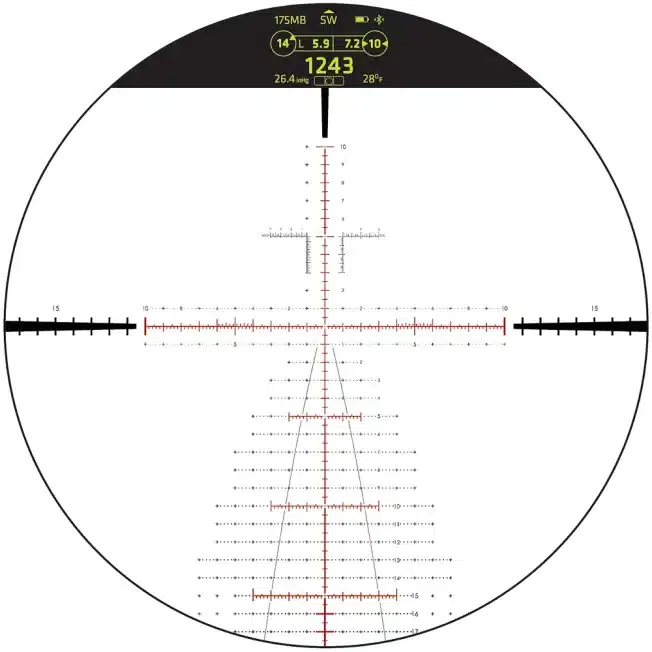

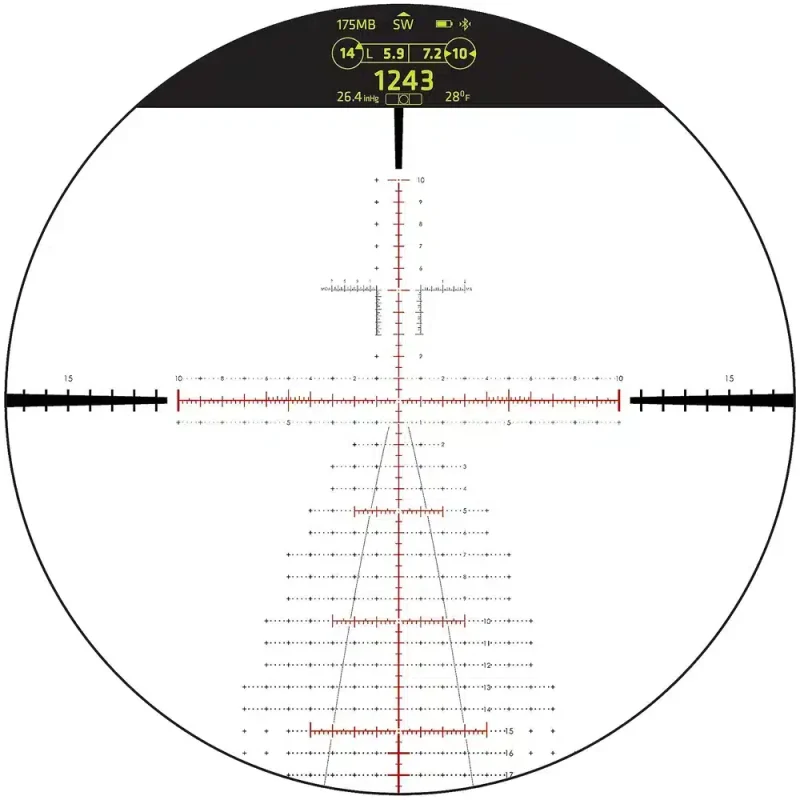

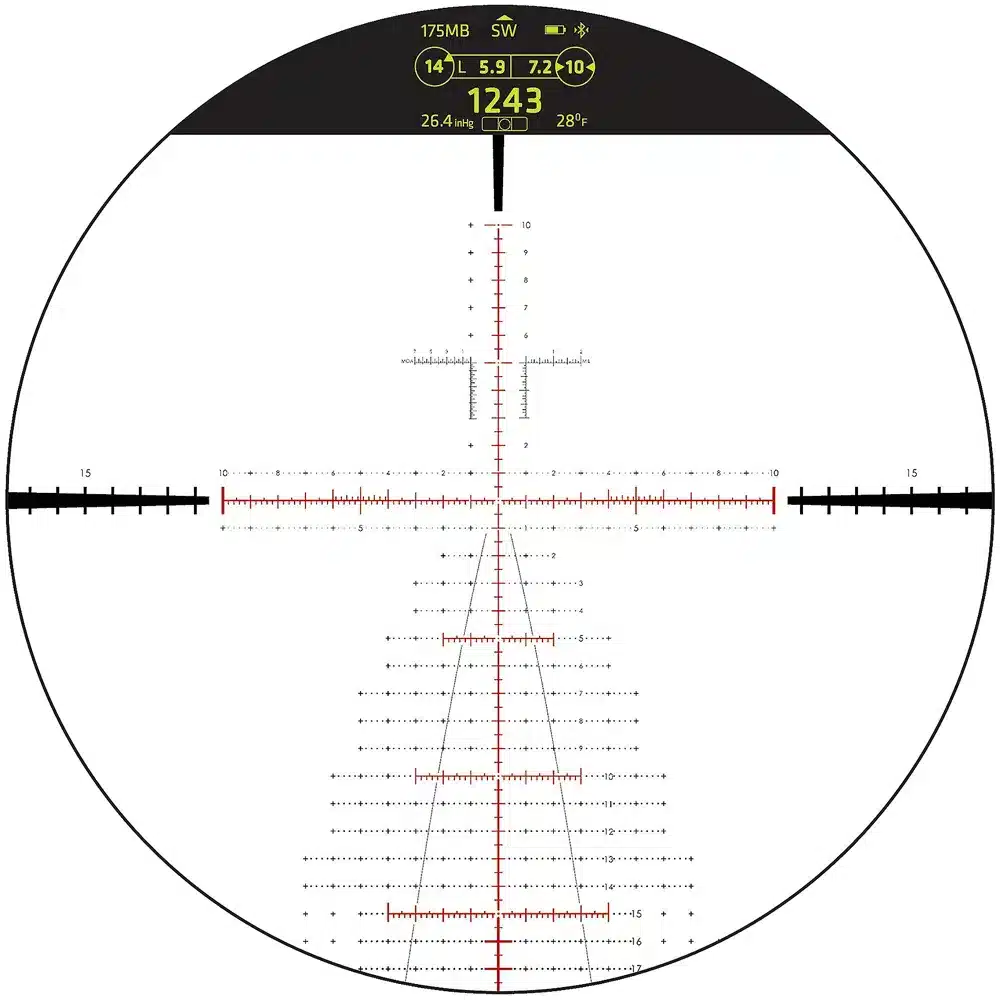

  • Reticle Details:RX1
  • Field of View:4.3° – 8.3°
  • Exit Pupil:8.4 – 2mm
  • Eye Relief:82mm-85mm
  • Light Transmission84.4%
  • Illuminated Reticle:Yes
  • Scope Finish:Gray
  • Scope Turret Rotation:Counter Clockwise (CCW)
  • Product TypeRiflescopes
  • UPC855666005094
  • MPNAY-E2602L

Find the rest of our precision optics here

Weight 80 oz
Dimensions 14 × 4 × 4 in
