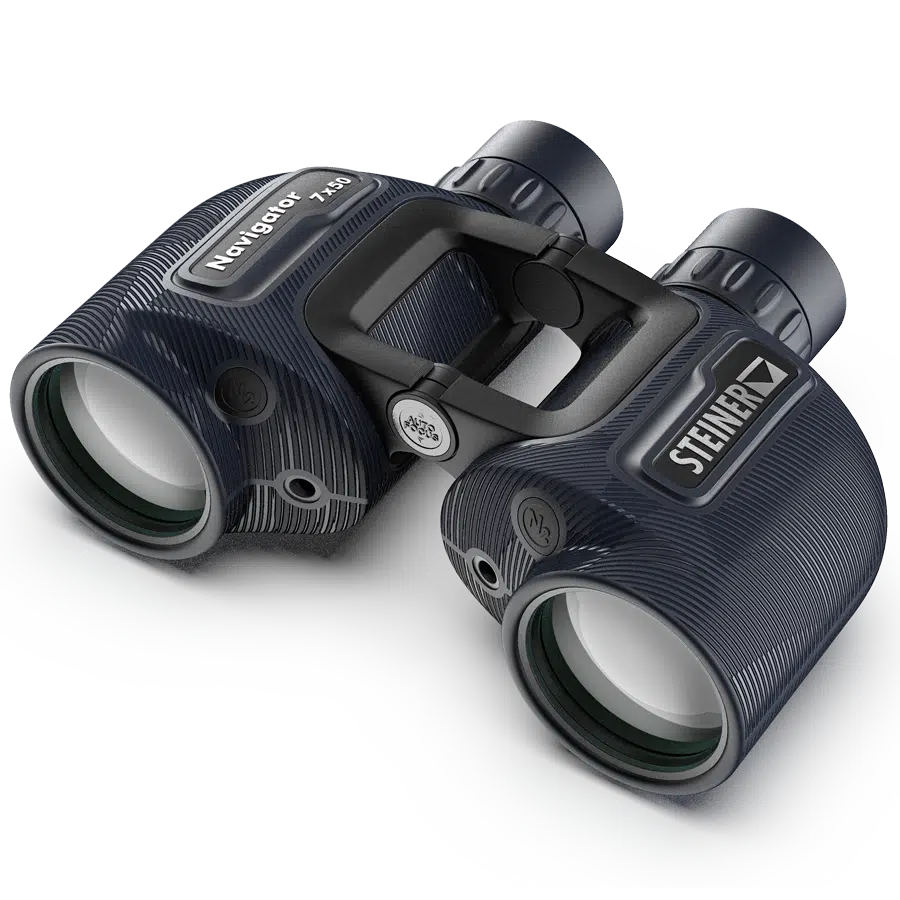

Navigator 7×50

The Navigator 7×50 Binoculars take Steiner’s popular marine series to the next generation with innovative product features. New open-bridge design enhances handling, alone with a texture body for a sure grip in any weather.

The Navigator with 50mm lens diameter and 7x magnification offers a stable image even in rough seas as well as guarantees bright images with excellent contrast and sharpness of detail in the dark.

• The new Open-Bridge-System makes handling on deck much easier.
• Always sharp images from 20m to infinity – without refocusing
• Extreme ruggedness, water pressure proof to 5 m

Navigator 7×50 Features

Open-Bridge-System The new Open-Bridge-System makes handling on deck much easier. In addition, the binoculars can be easily grabbed and held with one hand to always ensure a safe navigation.

Steiner-Auto-Focus Once set, the STEINER Auto-Focus always delivers crystal-clear images in 3D brilliance from 20m to infinity – without refocusing. The 7x magnification ensures blur-free images to identify tons, beacons and bridge numbers, even in rough weather conditions (sea).

Special rubber coating texture The new wave-like rubber coating texture significantly improves the grip on the binoculars and the handling comfort. In addition, the texture has special water-repellent properties that guarantee non-slip and safe handling even in rough sea.

Field of view The already impressive field of view of the Navigator Pro Series has been further improved. This gives you an even more breathtaking overview when looking through the binoculars. This extended field of view makes it easier to navigate safely when entering a harbor or in similar narrow environments such as when passing a bridge.

Legendary ruggedness Due to durable Makrolon housing made of polycarbonate that withstands impacts up to 11G, floating prism bearings for shock absorption, water pressure proofness up to 5m, nitrogen pressure filling against fogging inside, temperature range from -20°C to +70°C.

Advanced accessories We developed for you a new universal attachment system for the neoprene harness. This can be exchanged easily and intuitively between future Steiner products. In addition, a new bag is included to ensure that your binoculars are always optimally protected even when not in use. The usual accessories, such as rain caps and lens caps, are of course still included.

Navigator 7×50 Specs

Item No.	Magnification	Objective Lens	Field of View	Special Feature	Ranging Distance
2342	7x	50 mm	419 ft. at 1,000 yd.		–

Ranging Distance	–
Focus System	Auto-Focus
Optics Systems	High Contrast
Close Focus	66 ft.
Angle of View	–
Exit Pupil	7.14 mm
Eye Relief	–
IP Distance	–
Diopter Range	+/- 5 dpt
Luminosity	51.02
Twilight Factor	18.71
Compass	No
Eyecups	Cylindric
Rubber Armoring	NBR Long Life
Waterproof	5 meters
Weight	26.6 oz
Dimension (HxWxL)	4.2 x 8.2 x 2.75 in
Neck Strap	Float Strap
Neck Strap Attachment	Universal Attachment System
Battery	CR1225
Special Features	–
Warranty	Heritage™ Warranty
Nitrogen Filled	Yes
Objective Cover	–
Rain Protection Cap	–
Carry Case	Yes

Download PDF of Specifications
