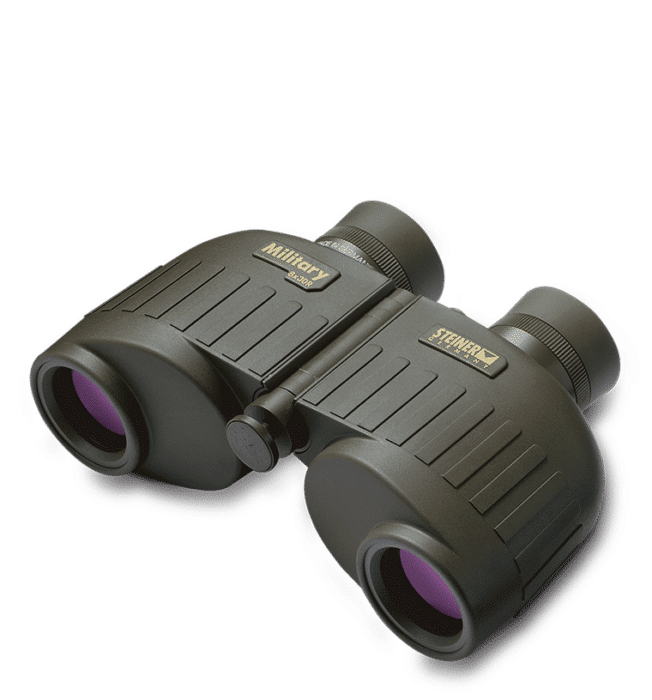

M830r 8x30r


Available on backorder

M830r 8x30r

Steiner’s Military Series M830r 8x30r is the standard binocular of many armies in the world. The Military Series binoculars are built to stringent military specifications, ruggedly designed for the fiercest conflicts and toughest environments, and have earned a reputation for performance and durability in countless tactical applications under extreme conditions. No binocular has proven its worth to so many troops in urgent situations. You, your men, and your mission deserve nothing less.

Light and easy to handle, with high definition lenses for bright images and a wide field of view for steady viewing, even on moving vehicles. Includes the precision mil radian ranging reticle.

Included Accessories: Neck Strap, Objective Covers, Rain Protection Cap

M830r 8x30r Features

Floating Prism System

uses flexible silicone lens mount to absorb severe shock, impact and abuse without damage

Compact Design

shifts the center of gravity into the palms for comfortable, long-time observation and round-the-shoulder shape won’t hang up on hatches and doors in urgent situations.

Sports-Auto Focus System

lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 yards to infinity. No more chasing focus on moving objects.

Makrolon housing

is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.

N2 Injection system

seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition – from artic cold to desert heat.


to 16 feet pressurized nitrogen-filled tubes resist water intrusion even when submerged.

M830r 8x30r Specs

Item No. Magnification Objective Lens Field of View Special Feature Ranging Distance
2640 8 x 30 mm 392 ft at 1000 yds Reticle, Military Specifications
Ranging Distance
Focus System Auto Focus
Optics Systems Fully Multi-Coated
Close Focus 66 ft
Angle of View
Exit Pupil 7.1 mm
Eye Relief 20 mm
IP Distance 56 – 74 mm
Diopter Range +/- 5 dpt
Luminosity 14
Twilight Factor 15.5
Compass No
Eyecups Cylindrical
Rubber Armoring NBR Long Life Rubber Armoring
Waterproof Submersion to 16 ft
Weight 18.7 oz
Dimension (HxWxL) 4.2 in x 6.7 in x 12 in
Neck Strap Yes
Neck Strap Attachment Standard
Special Features
Warranty Heritage™ Warranty
Nitrogen Filled
Objective Cover Yes
Rain Protection Cap Yes
Carry Case

Check out the rest of our store here

Weight 70 oz
Dimensions 14 × 4 × 4 in
