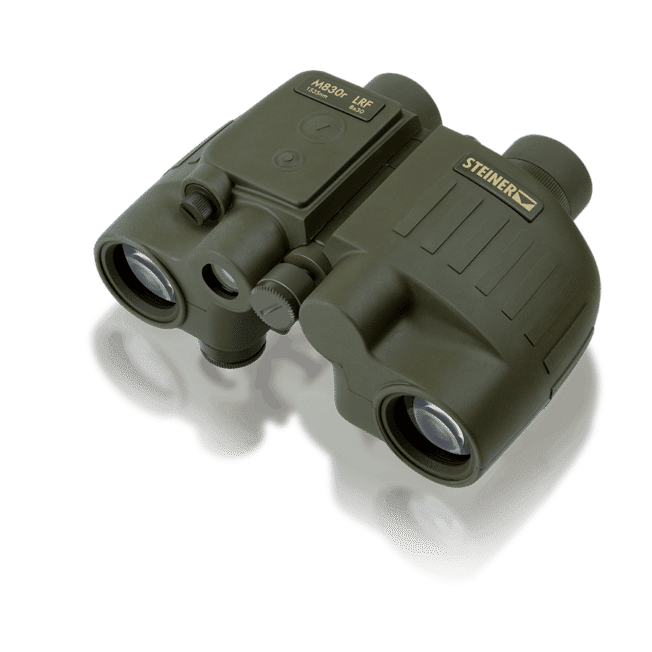

M830r LRF


Available on backorder

M830r LRF

The M830r LRF 1535nm ranges farther for targeting accuracy, unknown to your opponent. It calculates target distance from 50 meters to beyond 6,000 meters, using a wavelength invisible to your adversary’s night vision devices. Opponents won’t know they’re being targeted, your position stays hidden, and challenging targets can be zeroed in. With Steiner’s high-precision optics and longer-range accuracy, the edge is yours. Perfect for mobile troops who travel light. Lenses and prisms are combined with state-of-the-art coatings to provide bright, crisp images at any range. Ranges can be set to meters or yards.

Included Accessories: Case, Cleaning Cloth, Neck Strap, Objective Covers, Rain Guard, Shoulder Strap

M830r LRF Features

Sports-Auto Focus System

lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 yards to infinity. No more chasing focus on moving objects.

Floating Prism System

uses flexible silicon lens mount to absorb severe shock, impact and abuse without damage

Ergonomic Design

shifts the center of gravity into the palms for comfortable, long-time observation and round-the-shoulder shape won’t hang up on hatches and doors in urgent situations.

N2 Injection system

seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition – from artic cold to desert heat.

NBR Rubber Armoring

is durable, slip-proof and noiseless to ensure secure, chassis-protecting grip in all conditions.

Makrolon housing

is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.

M830r LRF Spec

Item No. Magnification Objective Lens Field of View Special Feature Ranging Distance
2681 8 x 30 mm 438 ft at 1000 yds Ranges to 6,000 m 6,000 meters (6564 yd.)


Ranging Distance 6,000 meters (6564 yd.)
Focus System Auto Focus
Optics Systems Fully Multi-Coated
Close Focus 66 ft
Angle of View
Exit Pupil 7.1 mm
Eye Relief
IP Distance 56 – 74 mm
Diopter Range +/- 5 dpt
Luminosity 14
Twilight Factor 15.5
Compass No
Eyecups Cylindrical
Rubber Armoring NBR Long Life Rubber Armoring
Waterproof Submersion to 16 ft
Weight 33 oz
Dimension (HxWxL) 4.5 in x 6.7 in x 12 in
Neck Strap Yes
Neck Strap Attachment Standard
Battery CR2
Special Features Tripod Mount
Warranty Heritage™ Warranty
Nitrogen Filled
Objective Cover Yes
Rain Protection Cap Yes
Carry Case Yes


Check out the rest of our store here

Weight 70 oz
Dimensions 14 × 4 × 4 in
