M830r LRF 8×30


Available on backorder

M830r LRF 8×30

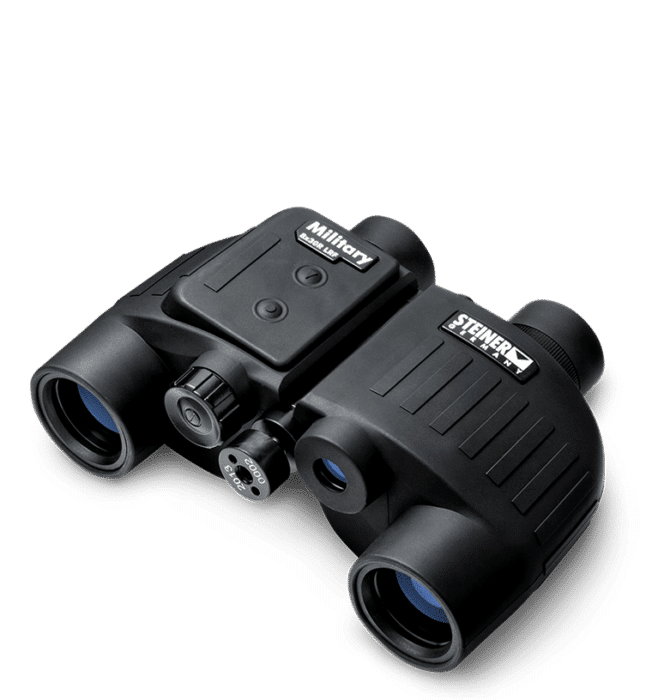

The M830r LRF 8×30 is compact, powerful laser rangefinder is universally suited for all military services and tactical units. It’s the perfect combination of premium Steiner binoculars with a powerful class 1/eye safe laser for determining range to targets, plus a SUMR reticle for targeting redundancy in case of battery failure or out-of-range target. No other bino/rangefinder combo will deliver the image and ranging accuracy and reliability of these military veterans. Perfect for mobile troops who travel light. Lenses and prisms are combined with state-of-the-art coatings to provide bright, crisp images at any range. Ranges can be set to meters or yards.

Included Accessories: Neck Strap, Objective Cover, Rain Protection Cap

M830r LRF 8×30 Features

Floating Prism System

uses flexible silicone lens mount to absorb severe shock, impact and abuse without damage

Ergonomic Design

shifts the center of gravity into the palms for comfortable, long-time observation and round-the-shoulder shape won’t hang up on hatches and doors in urgent situations.

N2 Injection system

seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition – from artic cold to desert heat.

Sports-Auto Focus System

lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 yards to infinity. No more chasing focus on moving objects.

NBR Rubber Armoring

is durable, slip-proof and noiseless to ensure secure, chassis-protecting grip in all conditions.

Makrolon housing

is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.

M830r LRF 8×30 Specs

Item No. Magnification Objective Lens Field of View Special Feature Ranging Distance
2680 8 x 30 mm 319 ft at 1000 yds SUMR reticles 27 to 1,860 Yds.


Ranging Distance 27 to 1,860 Yds.
Focus System Auto Focus
Optics Systems Fully Multi-Coated
Close Focus 66 ft
Exit Pupil 7.1 mm
IP Distance 56 – 74 mm
Diopter Range +/- 5 dpt
Luminosity 14
Twilight Factor 15.5
Compass No
Eyecups Cylindrical
Rubber Armoring NBR Long Life Rubber Armoring
Waterproof Submersion to 16 ft
Weight 26.5 oz
Dimension (HxWxL) 4.5 in x 6.7 in x 12 in
Neck Strap Yes
Neck Strap Attachment Standard
Battery CR2
Special Features Laser Rangefinder
Warranty Heritage™ Warranty
Nitrogen Filled
Objective Cover Yes
Rain Protection Cap Yes

Check out the rest of our store here

Weight 70 oz
Dimensions 14 × 4 × 4 in
