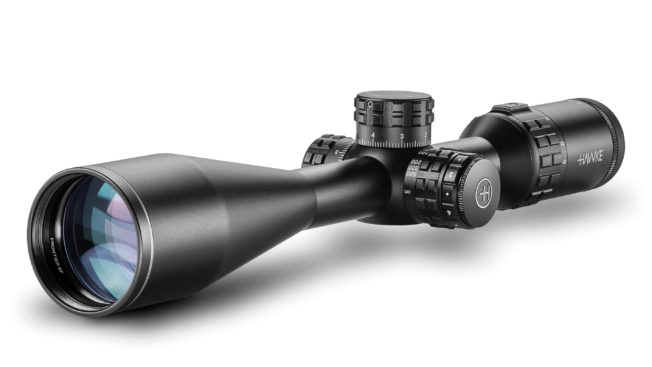

FRONTIER SF 5-25×50 MIL PRO RETICLE

$659.99

SKU: 18140-2 Categories: , , Tag:

FRONTIER SF 5-25x50 MIL PRO RETICLE

FRONTIER SF 5-25×50 MIL PRO RETICLE, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting.



FRONTIER SF 5-25×50 MIL PRO RETICLE Features

  • Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
  • 1 Inch Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Wide Angle FOV
  • High Volume Eyebox
  • 100mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 21 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring
  • Supplied With Professional Metal Flip-Up Covers.

FRONTIER SF 5-25×50 MIL PRO RETICLE Specs

Length:



364mm



14.4″



Weight:



628g



22.2oz



Eye relief:



102mm



4″



Focus/Parallax – Side Focus

9m – ∞



10yds – ∞



Field of View:



7.5-1.5m @100m



22.5-4.5ft @100yds



Exit Pupil:



10-2.0mm



0.39-0.08″



Chassis



1″ Mono-tube



Optical System



5-25x



Objective



50mm



Illumination



Red



Reticle



Mil Pro



Elevation Increment



1⁄10 MRAD



Elevation Adjustment Range:



11 MRAD



Windage Increment



1⁄10 MRAD



Windage Adjustment Range



11 MRAD



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 21 Layers



Power Selector Style



Removable Zoom Lever



Focal Plane



Second Focal Plane (SFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turret



Mil Pro (20x) Reticle

Accurate mil spacing on 20x magnification. With half Mil spaced markings extending out to 8 Mil of holdover, the Mil Pro (20x) is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

Mil Pro 20x models have additional 1⁄4 Mil aim points on the center section of the reticle to give even greater precision.

When on 20x magnification, the Mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD.

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
