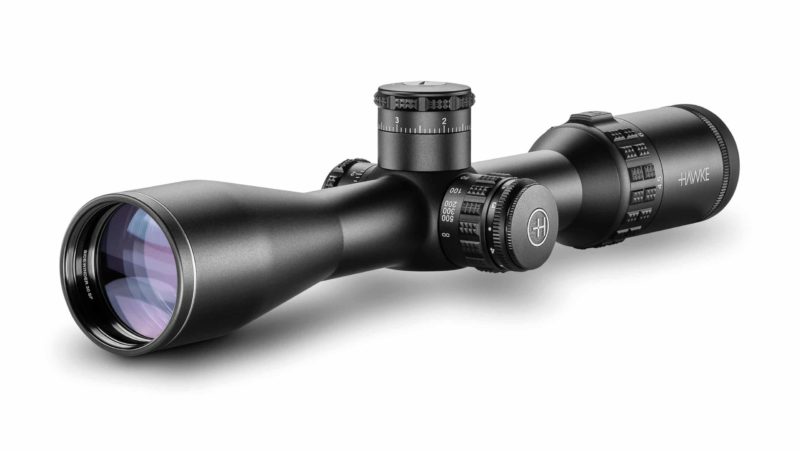

SIDEWINDER 30 SF 4.5-14×44

$579.99

SKU: N/A Categories: , , Tag:

SIDEWINDER 30 SF 4.5-14x44

SIDEWINDER 30 SF 4.5-14×44 boast a stunning 24 ultra-wide field of view with generous 4 inch (100mm) eye relief. This projects a high volume ‘eye-box’ image that passes through the scope, bringing you closer to the action than ever before. Improved sharpness and clarity provides incredible accuracy and unrivaled down range performance. 18 layer multiple lens coatings allow for the intense light transmission required from top optical devices. High grade, low dispersion crown glass is used throughout to create crisp first and second focal plane optical systems that have minimal field curvature and distortion.

SIDEWINDER 30 SF 4.5-14x44Features

  • Resettable Locking Turrets With Witness Window
  • 30mm Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Side Wheel – Index-Matched (Removable)
  • Ultra-Wide Angle 24° FOV
  • High Volume Eyebox
  • 100mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 18 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring

SIDEWINDER 30 SF 4.5-14×44 Specs

Length:



339mm



13.3″



Weight:



680g



24oz



Eye relief:



102mm



4″



Focus/Parallax – Fixed 9m – ∞



10yds – ∞



Field of View:



9.4-3m @100m



28.2-9ft @100yds



Exit Pupil:



9.8-3.1mm



0.39-0.12″



Chassis



30mm Mono-tube



Optical System



4.5-14x



Objective



44mm



Illumination



Red (6 Levels of Brightness –  Off Positions In-between)



Reticle



10x Half Mil



Elevation Increment



1⁄10 MRAD



Elevation Adjustment Range:



28 MRAD



Windage Increment



1⁄10 MRAD



Windage Adjustment Range



28 MRAD



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 18 Layers



Power Selector Style



Knurled Posi-Grip with Removable Zoom Lever



Focal Plane



Second Focal Plane (SFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turrets



10x Half Mil Reticle

Accurate mil spacing on 10x magnification. With half mil spaced markings out beyond 5 mil in all directions, the 10x Half Mil is a versatile reticle that provides aim points no matter how extreme the conditions.

A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which mil spacing you’re aiming with. Outer posts are segmented into half mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.



10x Half Mil Reticle

Instructions

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
Reticle

10x Half Mil Reticle
