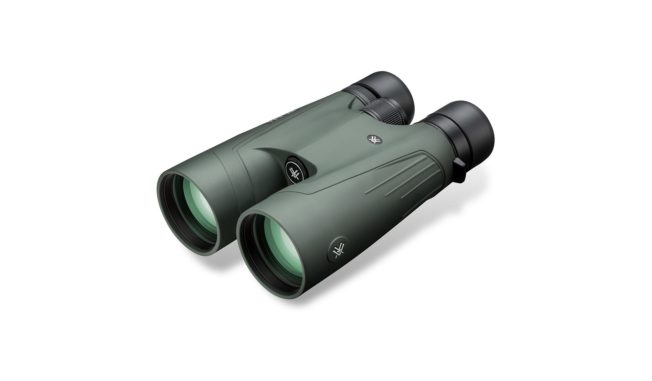

KAIBAB HD 18X56
It takes serious patience and superior optics to locate trophy animals at extreme distances. The Kaibab HD 18×56 delivers the premium-quality, high-magnification optical performance you need to get the job done. Intended to be used with a tripod for extended, comfortable, rock-steady viewing.
Note – Recommended for use with a tripod. Tripod adapter included.
Included in the Box
- Rainguard
- Lens cloth
- Tethered objective lens covers
- Comfort neck strap
- Deluxe padded carry case
- Uni-Daptor quick-release tripod adapter
Features
OPTICAL FEATURES
- APO System:Â Index-matched lenses correct color across the entire visual spectrum.
- HD Lens Elements:Â Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
- XR Plus Fully Multi-Coated:Â Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
- Dielectric Coating:Â Multi-layer prism coatings provide bright, clear, color-accurate images.
- Plasma Tech:Â Cutting edge coating application process provides unparalleled coating durability and performance
- Phase Correction:Â Coating on roof prism models enhances resolution and contrast.
CONSTRUCTION FEATURES
- Roof Prism:Â Valued for greater durability and a more compact size.
- Waterproof:Â O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
- Fogproof:Â Argon gas purging prevents internal fogging over a wide range of temperatures.
- ArmorTek: Â Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Rubber Armor:Â Provides a secure, non-slip grip, and durable external protection.
- 56 mm Lenses:Â Maximize low light performance.
CONVENIENCE FEATURES
- Adjustable Eyecups:Â Twist up and down for comfortable viewing with or without eyeglasses.
- Center Focus Wheel:Â Adjusts the focus of both binocular barrels at the same time.
- Diopter Adjusts for differences in a user’s eyes. Located on right eyepiece.
- Tripod Adaptable:Â Compatible with a tripod adapter, allowing use on a tripod or car window mount.
KAIBAB HD 18X56 Specs
Magnification 18x
Objective Lens Diameter 56 mm
Eye Relief 16.4 mm
Exit Pupil 3.1 mm
Linear Field of View 194 feet/1000 yards
Angular Field of View 3.7 degrees
Close Focus 19.8 feet
Interpupillary Distance 60-76 mm
Height 7.7 inches
Width 5.7 inches
Weight 43.5 oz
Parts Diagram (PDF)Â Download
Product Manual (PDF)Â Download
