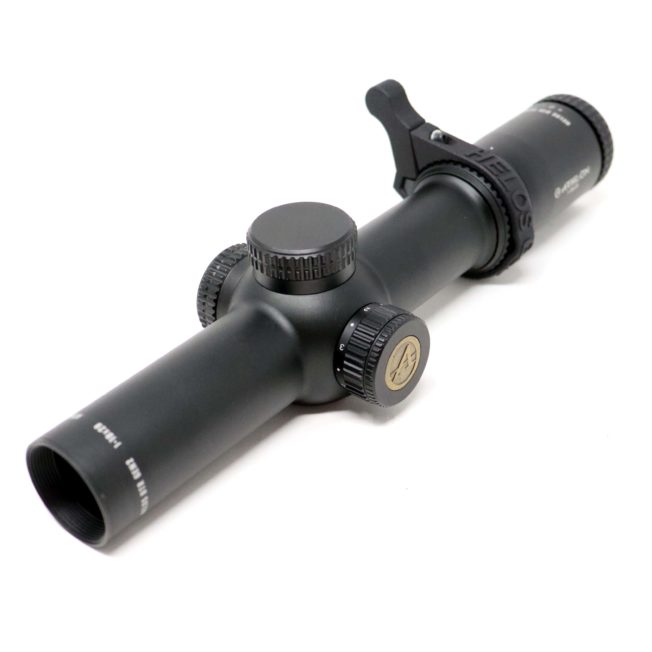

The Helos BTR GEN2 1-10×28 ATMR4 SFP IR MOA is a second focal plane option for tactical shooters looking for the latest trend in optics at an affordable price. Accurately assess and engage silhouette-sized targets out to 700 yards using 68 or 69 gr .223/5.56 Nato cartridges with the ATMR4 SFP IR MOA reticle.

This Helos BTR  GEN2 Model has ATMR4 second focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214103



Helos BTR GEN2 1-10×28 ATMR4 SFP IR MOA Features

Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Aircraft Grade Aluminum	The aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 1-10×28 ATMR4 SFP IR MOA Specs

Magnification	1-10
Objective Lens Diameter	28 mm
Reticle	ATMR4 SFP IR MOA, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multi-Coated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	34 mm
Eye Relief	3.2 inches
Field of View @100 yards	110-10 feet
Click Value	0.5 MOA
Adjustment range per rotation	44 MOA
Effective Elevation Adjustment	100 MOA
Total Windage Adjustment	100 MOA
Turret Style	Capped
Parallax Adjustment	100
Purging Material	Argon
Length	10.3 inches
Weight	18.3 ounces
User Instruction Manual	Download
Reticle Manual	Download

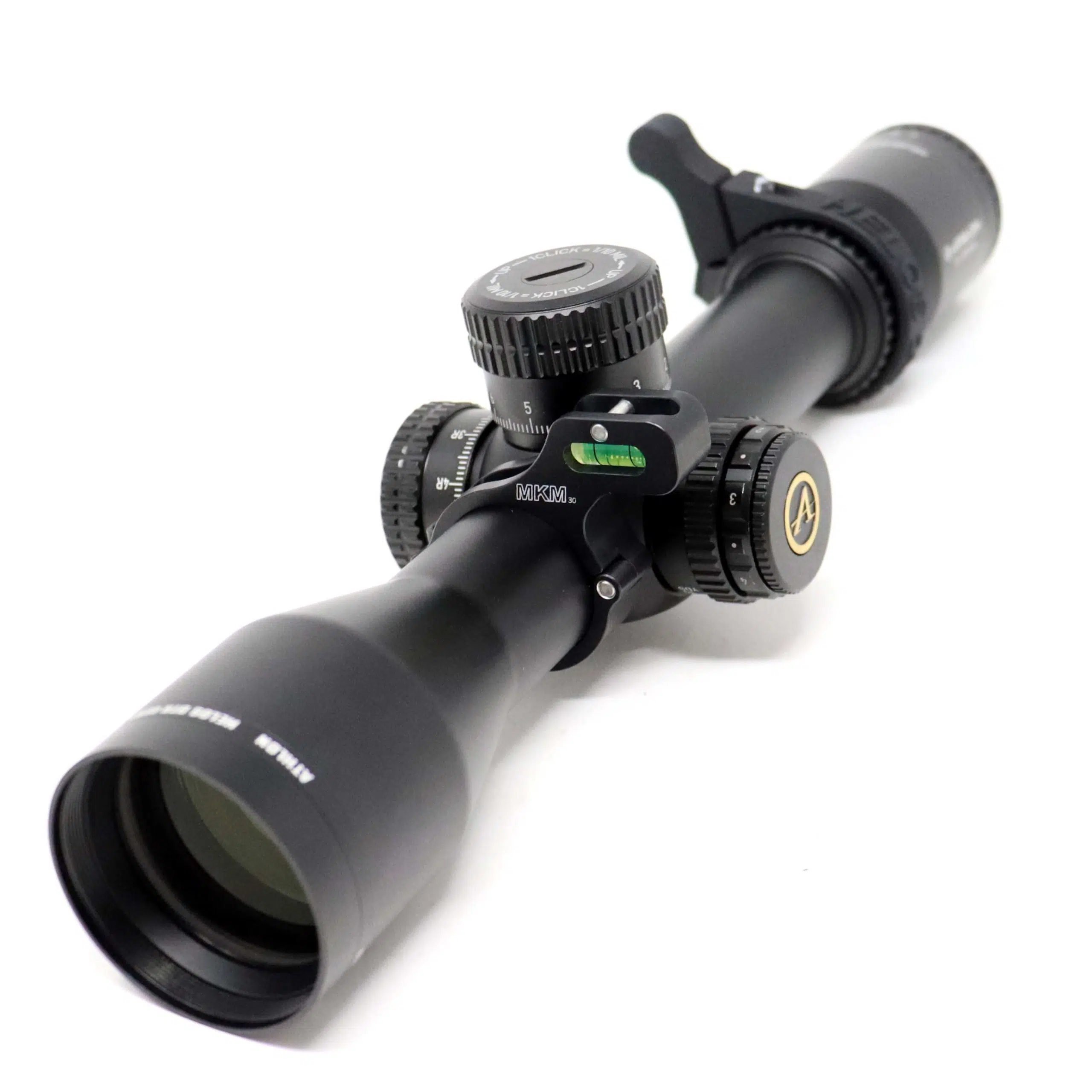

Helos BTR GEN2 2-12×42 AHMR2 FFP IR MOA



This Helos BTR 2-12×42 Model has AHMR2 first focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214104



Helos BTR GEN2 2-12×42 AHMR2 FFP IR MOA Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
6061 T6 Aluminum	The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .



Helos BTR GEN2 2-12×42 AHMR2 FFP IR MOA Specs



Magnification	2-12
Objective Lens Diameter	42 mm
Reticle	AHMR2 FFP IR MOA, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multi-Coated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	30 mm
Eye Relief	3.6 inches
Field of View @100 yards	55.7-9.6 feet
Click Value	0.25 MOA
Adjustment range per rotation	25MOA
Total Elevation Adjustment	110 MOA
Total Windage Adjustment	80 MOA
Turret Style	Exposed
Parallax Adjustment	Side Focus – 10 yards to infinity
Purging Material	Argon
Length	11.8 inches
Weight	25.4 ounces
User Instruction Manual	Download
Reticle Manual	Download

Helos BTR GEN2 2-12×42 AHMR2 FFP IR MIL

This Helos BTR GEN2 2-12×42 Model has AHMR2  first focal plane illuminated MIL reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214105

Helos BTR GEN2 2-12×42 AHMR2 FFP IR MIL Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multi-Coated	Fully Multi-Coated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	Allows you to return to your zero with a sharp and precise stop, right on your initial zero.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 2-12×42 AHMR2 FFP IR MIL Specs

Magnification	2-12
Objective Lens Diameter	42 mm
Reticle	AHMR2 FFP IR MIL, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multi-Coated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	30 mm
Eye Relief	3.6 inches
Field of View @100 yards	55.7-9.6 feet
Click Value	0.1 MIL
Adjustment range per rotation	10MIL
Total Elevation Adjustment	32MIL
Total Windage Adjustment	25MIL
Turret Style	Exposed
Parallax Adjustment	Side Focus – 10 yards to infinity
Purging Material	Argon
Length	11.8 inches
Weight	25.4 ounces
User Instruction Manual	Download
Reticle Manual	Download

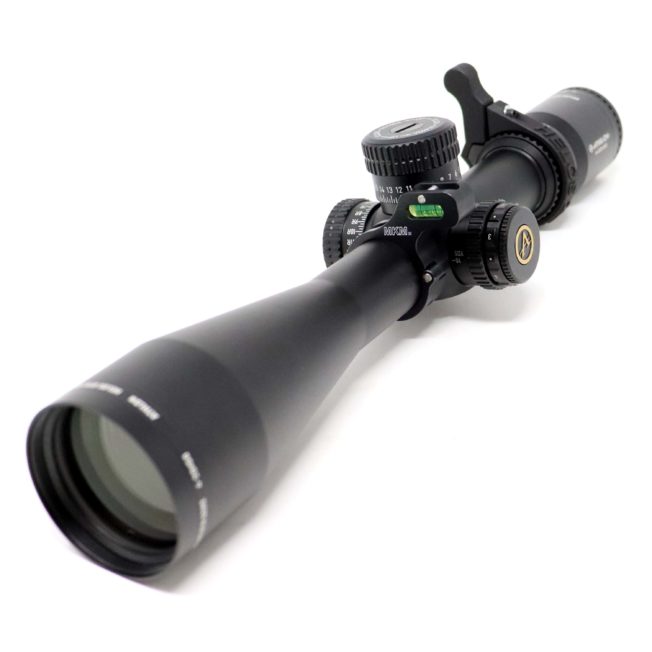

Helos BTR GEN2 4-20×50 APRS6 FFP IR MIL

This Helos BTR GEN2 4-20×50 Model has the APRS6  first focal plane illuminated MIL reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214109



Helos BTR GEN2 4-20×50 APRS6 FFP IR MIL Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 4-20×50 APRS6 FFP IR MIL Specs

Magnification	4-20
Objective Lens Diameter	50 mm
Reticle	APRS6 FFP IR MIL, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multi-Coated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	30 mm
Eye Relief	3.6 inches
Field of View @100 yards	27.9-5.6 feet
Click Value	0.1 MIL
Adjustment range per rotation	10MIL
Total Elevation Adjustment	29MIL
Total Windage Adjustment	25MIL
Turret Style	Exposed
Parallax Adjustment	Side Focus – 10 yards to infinity
Purging Material	Argon
Length	13.3 inches
Weight	27.6 ounces
User Instruction Manual	Download
Reticle Manual	Download

Helos BTR GEN2 4-20×50 APLR6 FFP IR MOA

This Helos BTR 4-20×50 Model has the APLR6 first focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214108

Helos BTR GEN2 4-20×50 APLR6 FFP IR MOA Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 4-20×50 APLR6 FFP IR MOA Specs

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

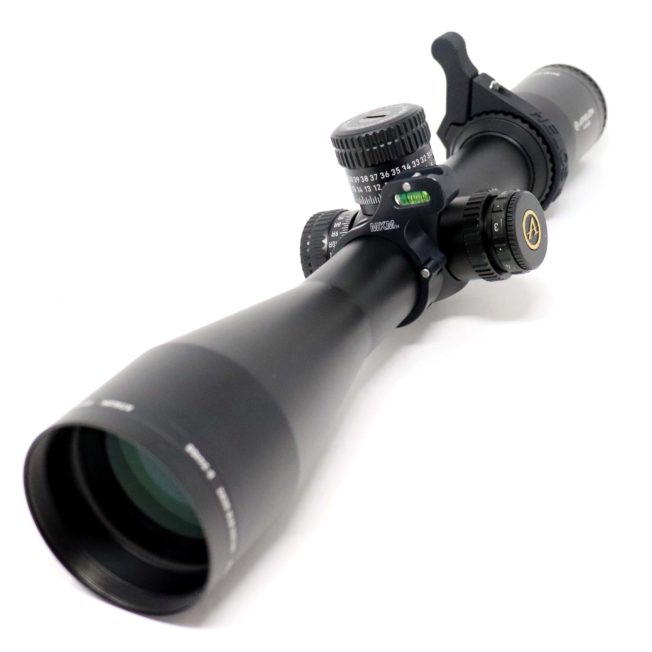

Helos BTR GEN2 6-24×56 APRS6 FFP IR MIL

This Helos BTR 6-24×50 Model has APRS6 first focal plane illuminated MIL reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214114



Helos BTR GEN2 6-24×56 APRS6 FFP IR MIL Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 6-24×56 APRS6 FFP IR MIL Specs

Magnification	6-24
Objective Lens Diameter	56 mm
Reticle	APRS6 FFP IR MIL, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multi-Coated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	34 mm
Eye Relief	3.7 inches
Field of View @100 yards	19.9-5.12 feet
Click Value	0.1 MIL
Adjustment range per rotation	10MIL
Total Elevation Adjustment	29MIL
Total Windage Adjustment	25MIL
Turret Style	Exposed
Parallax Adjustment	Side Focus – 10 yards to infinity
Purging Material	Argon
Length	14.3 inches
Weight	34.5 ounces
User Instruction Manual	Download
Reticle Manual	Download

Helos BTR GEN2 6-24×56 APLR6 FFP IR MOA

This Helos BTR 6-24×56 Model has APLR6 first focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214113

Helos BTR GEN2 6-24×56 APLR6 FFP IR MOA Features

First Focal Plane Reticle	First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out.  These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking Turrets	Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
Illuminated Reticle	The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle	Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated	Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Precision Zero Stop	The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark.
Heat Treated One Piece Tube Construction	Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof	Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof	Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof	Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged	Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

Helos BTR GEN2 6-24×56 APLR6 FFP IR MOA Specs

Magnification	6-24
Objective Lens Diameter	56 mm
Reticle	APLR6 FFP IR MOA, Glass Etched
Surface Finish	Matte
Lens Coating	Wide Band Fully Multicoated
Extra Coating	Xtra Protective Coating
Tube Material	Aircraft Grade Aluminium
Tube Diameter	34 mm
Eye Relief	3.7 inches
Field of View @100 yards	19.9-5.12 feet
Click Value	0.25 MOA
Adjustment range per rotation	25MOA
Total Elevation Adjustment	100MOA
Total Windage Adjustment	80MOA
Turret Style	Exposed
Parallax Adjustment	Side Focus – 10 yards to infinity
Purging Material	Argon
Length	14.3 inches
Weight	34.5 ounces
User Instruction Manual	Download
Reticle Manual	Download
