Helion 2 XQ50


Available on backorder

SKU: PL77397 Categories: , , Tag:

Helion 2 XQ50

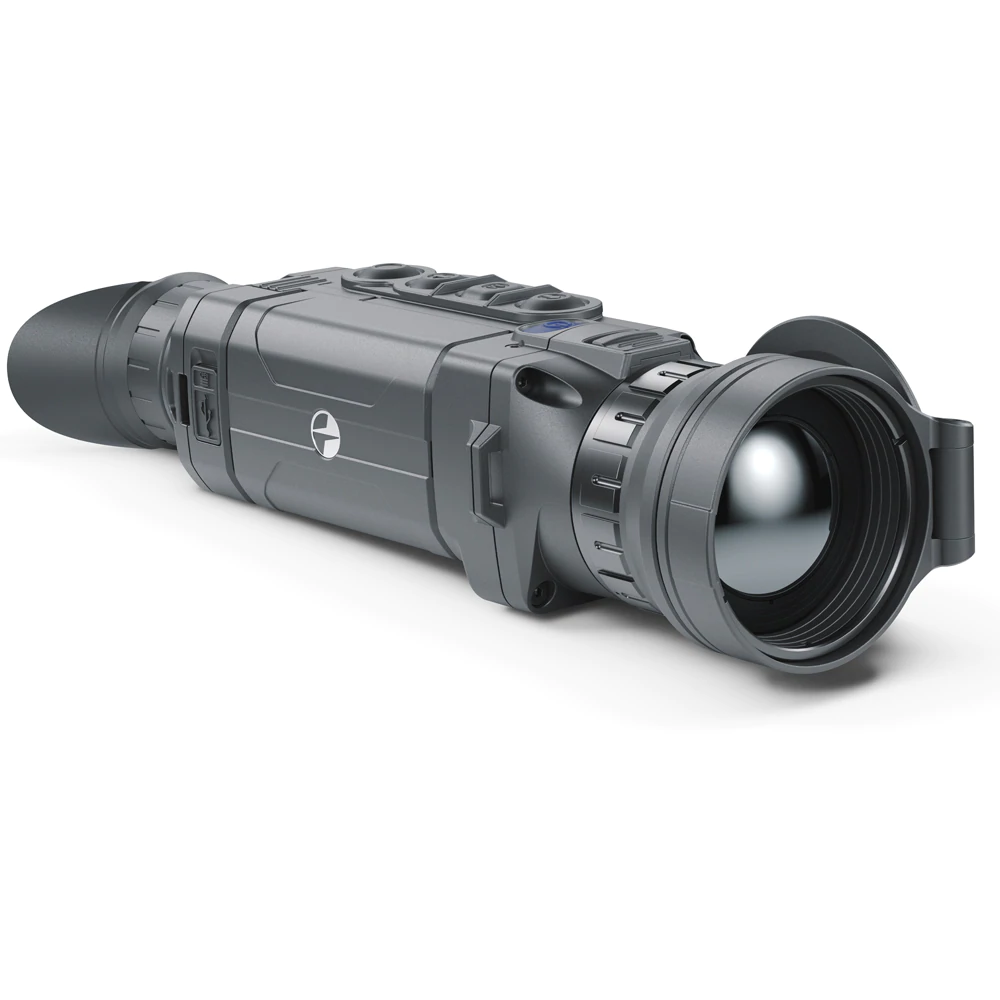

Pulsar’s Helion 2 XQ50F is an ultramodern thermal monocular that features a full-color HD AMOLED display, built-in recorder and camera and wireless connectivity, enabling users to livestream to Facebook or YouTube. Additionally, the Helion 2 XQ50F has 1,800-yard long-range detection and operates at temperatures from -25C(-13F) to 50C (122F). With an IPX7 waterproof ratings, updatable software and rechargeable battery, the Helion 2 is the crown jewel of modern monocular technology.

Included in Package

  • Battery pack
  • USB cable
  • Hand strap
  • Lens Cleaning Cloth
  • Carrying Case

Battery Used

  • Type: Pulsar IPS7 (Li-ion)
  • Quantity: 1
  • Battery Life (w/o video out): 9 Hours

Product Downloads

Helion 2 XQ50 Features

  • Enhanced thermal sensor up to 1,800 yards
  • NETD <40mK
  • 17-micron pixel pitch
  • 384×288 thermal sensor
  • 5-18x digital magnification
  • Full color HDAMOLED Display
  • 8 color palettes
  • Built-in recorder and camera
  • 16 GB memory
  • Operates from -25C to 50C
  • IPX7 Waterproof rating
  • Rechargeable Battery

Helion 2 XQ50 Specs

Detector type  Uncooled ASi
Frame rate,  50 HZ
Microbolometer resolution, pix.  384×288
Pixel pitch, µm  17
NETD, mK  <40
Display type AMOLED
Display resolution, pix.  1024×768
Magnification, x 4,5-18
Digital zoom, x 2/4
Lens focus, mm  50
Relative aperture, D/f’  1:1
Field of View,°  7.5
Minimum focusing distance, m  3-5
Eye relief, mm  15
Exit pupil, mm  5
Diopter adjustment, dptr.  ± 5
Detection range, m (object H/W = 1,7/0,5m)  1800
Built-in video recorder  yes
Built-in memory size, Gb  16
Built-in Wi-Fi module  yes
Stream Vision application support  yes
Micro USB socket  Power/data
Stadiametric rangefidner  yes
Color palettes  8
Power supply, V  3.0-4.2
Battery type  Pulsar IPS7 (Li-ion)
Battery life, hour  9
External power supply  5V MicroUSB
Tripod mount, inch  1/4
Operating Temp, °С – 25 … +50 – 25 … +50 – 25 … +50
Housing material  Magnesium alloy
Waterproof  IPX7
Calibration (non-uniformity correction)  manual, auto, semi-auto
Length, mm 234mm
Width, mm 55mm
Height, mm 58mm
Weight (without batteries) 0.5
SKU  77397

Check our other clip on thermal options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
