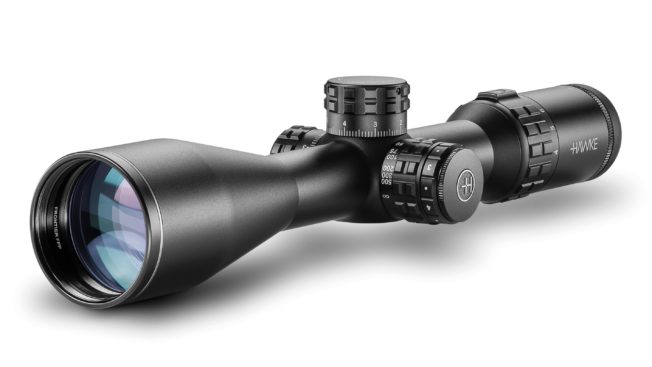

FRONTIER 30 FFP 4-20×50 MIL PRO RETICLE

$999.99

SKU: 18530-2 Categories: , , Tag:

FRONTIER 30 FFP 4-20x50 MIL PRO RETICLE

FRONTIER 30 FFP 4-20×50 MIL PRO RETICLE, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting. Features Hawke’s lifetime no fault warranty. Includes Free Shipping!

Features

  • Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
  • First Focal Plane (FFP)
  • 30mm Mono-Tube Chassis
  • Side Focus
  • Illumination
  • Wide Angle FOV
  • High Volume Eyebox
  • 100mm Eye Relief
  • Multi-LED High Intensity Reticle
  • High Grade, Low Dispersion Crown Glass
  • 21 Layer Fully Multi-Coated Lenses
  • Zoom Magnification Throw Lever (Removable)
  • Fast Focus Eyebell With Lock Ring
  • Supplied With Professional Metal Flip-Up Covers.

FRONTIER 30 FFP 4-20×50 MIL PRO RETICLE Specs

Length:



336mm



13.2″



Weight:



630g



22.2oz



Eye relief:



102mm



4″



Focus/Parallax – Fixed

9m – ∞



10yds – ∞



Field of View:



9.4 – 1.9m @100m



28.5 – 5.7ft @100yds



Exit Pupil:



12.5-2.5mm



0.49-0.1″



Chassis



30mm Mono-tube



Optical System



4-20x



Objective



50mm



Illumination



Red



Reticle



Mil Pro



Elevation Increment



1⁄10 MRAD



Elevation Adjustment Range:



23 MRAD



Windage Increment



1⁄10 MRAD



Windage Adjustment Range



23 MRAD



Material



Aluminum



Ocular Type



Locking Fast Focus



Lens Coating



Fully Multi-Coated – 21 Layers



Power Selector Style



Removable Zoom Lever



Focal Plane



First Focal Plane (FFP)



Turret Caps



No



Turret Type



Exposed Zero Lock ‘n’ Stop Turrets





FFP Mil Pro (20x) Reticle

The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

The FFP Mil Pro 20x has additional 1⁄4 Mil aim points on the center section of the reticle to give even greater precision.

Instructions

Check our other precision optics options here

Weight 70 oz
Dimensions 16 × 6 × 6 in
