Athlon Ares BTR

$699.99

Athlon Ares BTR (Includes Free Carbon Fiber Nylon Throw Lever and Billet Level) DISCONTINUED

Check out the Gen II Ares BTR here

When you want the best features from the top-tier riflescopes but not break the bank, look no further than the new Athlon Ares BTR first focal plane riflescope family. This feature rich riflescope is set to take the market by storm. HD Glass and advanced fully multicoated optics deliver crisp bright images for taking long range shots. The one piece tube, precision-machined from aircraft-grade 6061-T6 aluminum will deliver precise, accurate results all day long. With a precise true zero stop feature, you won’t find this product in the market at this price point, it just didn’t exist until NOW!



Available Models

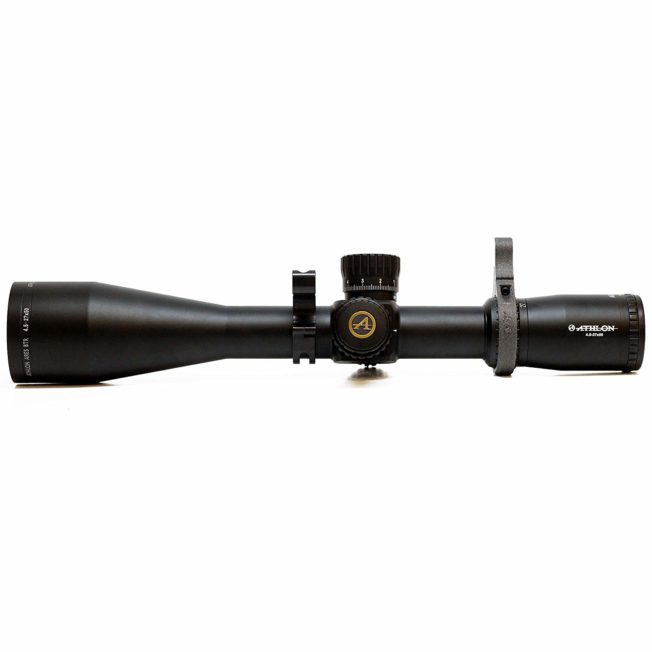

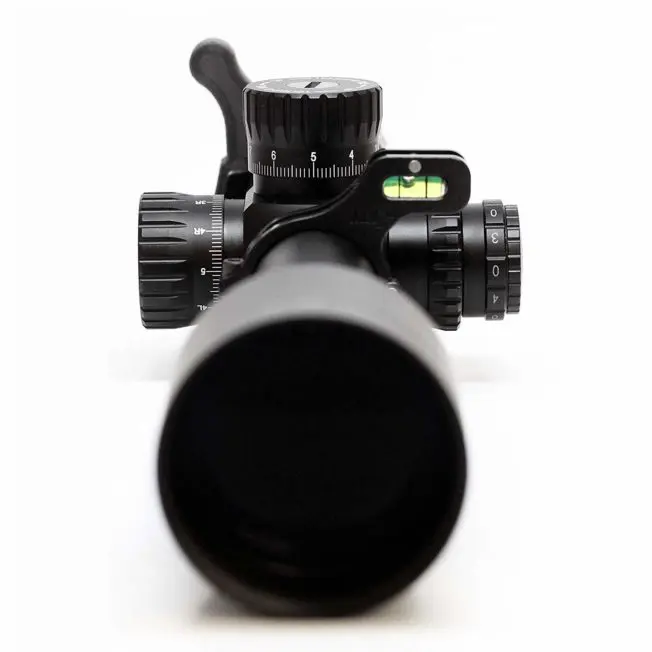

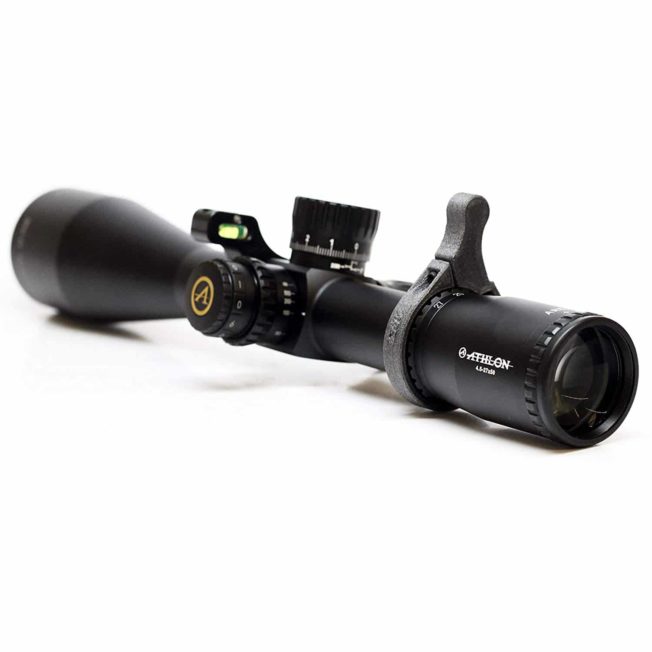

Athlon Ares BTR 4.5-27×50 APLR3 FFP IR MIL

This Ares BTR 4.5-27×50 Model has APLR3 first focal plane illuminated MIL reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:212007



Athlon Ares BTR 4.5-27×50 APLR3 FFP IR MIL Features

HD Glass HD Glass gives you better light transmission,  brighter, and  sharper image.
Illuminated Reticle The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
First Focal Plane Reticle First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out. The reticle offers quick target engagement at low power while offering precise holdover positions with finer details.
Etched Glass Reticle Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
XPL Coating XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.
Precision Zero Stop System The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark or blinded folded.
High Precision Erector System The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most accurate power settings and smoothest magnification change
6061 T6 Aluminum The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Exposed Tactical Direct Dial Exposed Direct Dial Turrets for elevation and windage allow you to quickly make adjustment as you needed and engage your target within a blink of your eyes
One Piece Tube Construction Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof Waterproof to protect the scope in the harshest weather conditions or if accidently submerged underwater
Fog proof Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .



Athlon Ares BTR 4.5-27×50 APLR3 FFP IR MIL Specification

Magnification 4.5-27
Objective Lens Diameter 50 mm
Reticle  APLR3 FFP IR MIL, Glass Etched illuminated
Surface Finish Matte
Lens Coating Wide Band Fully Multicoated
Extra Coating Xtra Protective Coating
Tube Material 6061 Aluminium
Tube Diameter 30 mm
Exit Pupil  11.1-1.8 mm
Eye Relief 3.9″
Field of View @100 yards 22.7-3.8 ft
Click Value 0.1 mil
Adjustment range per rotation 10 mil
Total Elevation Adjustment 24 mil
Total Windage Adjustment 24 mil
Turret Style Exposed Direct Dial
Parallax Adjustment Side Focus – 25 yards to infinity
Purging Material Argon
Length 13.8 “
Weight 27.3 oz
User Instruction Manual Download
Reticle Manual  Download
