Description

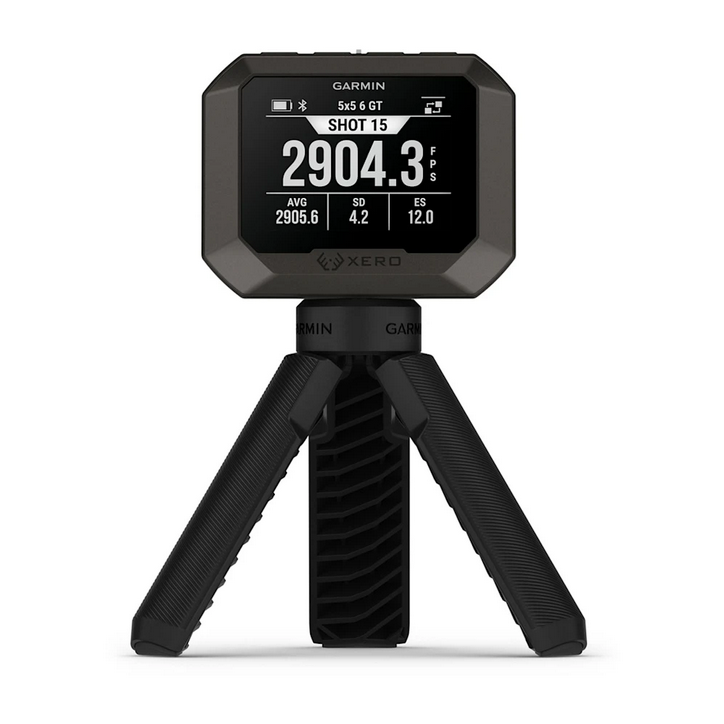

Xero C2 Chronograph

In ballistics there is no room for error. The Xero C2 chronograph is the source you can trust. It builds on the success of its predecessor with a faster shot processor and improved features for an experience you won’t find anywhere else.

What’s new

Rapid-fire support: Track up to 10 shots per second, depending on projectile velocity.
Applied Ballistics connectivity: Transfer muzzle velocity straight into the Applied Ballistics solver for long-range shooting solutions on a compatible smartphone.
Resume session: Switch between different firearms or test multiple bows or arrows and view data for each dedicated session.

What’s in the box?

Xero C2 chronograph
Protective cover
1/4-20 thread tripod
Charging/data cable
Documentation

Smartwatch integration

When using a compatible Garmin smartwatch, like the new tactix8 – Cerakote Edition, marksmen can easily access session controls, view live chronograph data and import muzzle velocity into the Applied Ballistics ecosystem.

ShotView app

Use the ShotView app on a compatible smartphone to record results, compare velocity for every shot fired, view live sessions data, track deviation and more. The new configurations feature also lets users manage and track projectile and load data for firearms and bows. And during a shooting session, if more than one Xero C2 is paired to the ShotView app, marksmen can conveniently start a session on one chronograph and continue it on another.

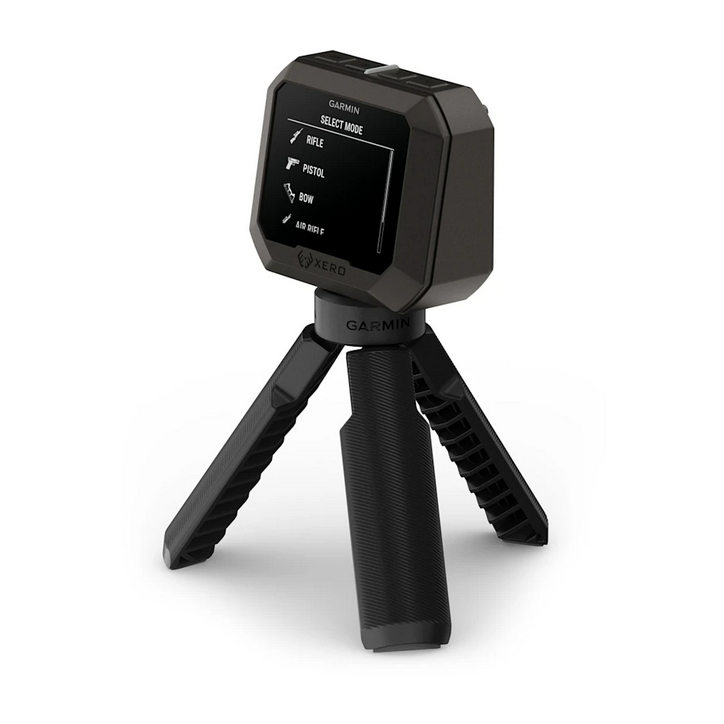

Purpose-built design

Compact and easy to transport, Xero C2 features a rugged design and reinforced housing that withstands recoil when mounted to a firearm. It also has an IPX7 water rating and sunlight-readable, high-contrast display that is easy to see while at the range. And the rechargeable lithium-ion battery makes it possible for users to shoot up to 2,000 shots (or up to 6 hours) on a single charge.

Xero C2Chronograph Specs

General
Dimension	3.03″ (77 mm) x 2.38″ (60.5 mm) x 1.36″ (34.44 mm) without tripod 5.1″ (130 mm) x 4.5″ (115 mm) x 5.5″ (138.5 mm) with tripod
Weight	123.2 g without tripod 178.2 g with tripod
Water rating	IPX7
Display Type	sunlight-visible, transflective, monochrome
Display Size	1.3″ x 1.7″ (33 mm x 44 mm), 2.2″ diagonal (55 mm)
Display resolution	240 x 320 pixels
Battery Type	internal rechargeable lithium-ion battery
Battery life	up to 6 hours
Operating range	-10° C to 55° C (14° F to 131° F)
Memory/History	200 sessions before a ShotView™ app sync is required to save data to phone
Interface	USB-C

Daily Smart Features
Connectivity	BLUETOOTH® technology
Mobile app	ShotView™ app

Chronograph Features
Tracks rifles up to 5000 FPS
Tracks bows and crossbows up to 600 FPS
Track pistols up to 5000 FPS
Tracks air rifles up to 2000 FPS
Tracks airsoft up to 1000 FPS
Track other projectiles up to 5000 FPS
Calculates kinetic energy at muzzle
Calculates power factor
Calculates extreme spread
Calculates standard deviation
Calculates string average
Delete shots in string	device or app
Decimal precision
Add individual shot notes	yes (on ShotView™ app)
Add session notes	yes (on ShotView™ app)
Mark shots with clean/cold bore	yes (on ShotView™ app)
Exclude shot from average and standard dev calculations	device or app
Tripod compatibility	yes (¼-20 thread compatible)
