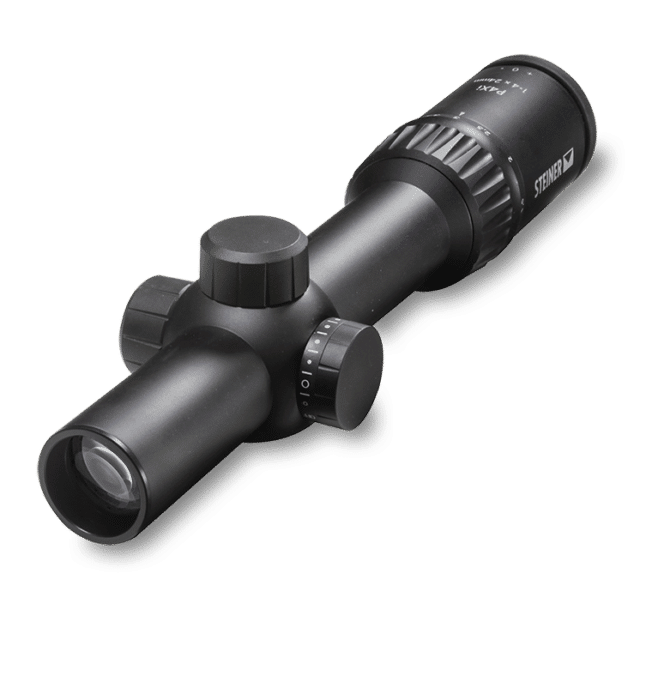

Steiner P4Xi 1-4x24mm IR P3TR


Availability: In stock (can be backordered)

SKU: 5202-1 Categories: , , Tag:

Steiner P4Xi 1-4x24mm IR P3TR

(Includes Free Pro Series Lever and Billet Rail Level)

The new Steiner P4Xi 1-4x24mm IR P3TR riflescope is a compact, tactical optic that is ideal for patrol rifles and AR platforms. This scope features a proven and versatile 4x zoom system with a true 1x that is perfect for close-quarters engagements and 400-yard accuracy at the highest magnification. High-contrast optics deliver outstanding results under poor light conditions. Steiner’s P3TR illuminated reticle is quick pointing and offers 11 levels of illumination for day or night operations.


Steiner P4Xi 1-4x24mm IR P3TR Features

  • 1-piece 30mm tube for increased strength and reliability as well as ample windage and elevation adjustment.
  • 4x zoom provides maximum range at the high end and true eyes-open situational awareness at low magnification.
  • Consistent eye relief and a generous eye box throughout the magnification range.
  • Low profile turrets and illumination controls are less likely to hang up or snag during movement.
  • Illuminated Reticle with 5 day/4 low Light/2 NV levels. An Off position between all 11 settings completely disconnects the battery at each off position to prevent battery drain.
  • Nitrogen filled. Waterproof, fogproof, shockproof durable construction you can trust to stand up to any cold or wet conditions.

Steiner P4Xi 1-4x24mm IR P3TR SPECS

Color: Black
Magnification: 1 – 4 x
Objective Lens Diameter: 24 mm
Tube Diameter: 30 mm
Reticle: P3TR
Reticle Focal Plane: Second Focal Plane (SFP)
Illumination Type: LED
Illumination Color: Red
Caliber: All
Eye Relief: 3.5 – 4 in
Exit pupil: 6 – 12 mm
Adjustment Type: MOA
Adjustment Click Value: 0.5 MOA
Adjustment Range: 100 MOA
Field of View, Linear: 30 – 121 ft at 100 yds
W/E Travel at 100 Yds: 100/100 MOA
Parallax: Fixed
Focus Range: 100 yds
Diopter Adjustment Range: -3 – 2 dpt
Lens Material: Glass
Optical Coating: Yes
Attachment/Mount Type: Scope Rings
Fit: Universal
Battery Type: CR2032
Battery Life: 10 hours
Operating Temperature: -13 – 145 Fahrenheit
Weather Resistance: Shock Resistant
Water Resistance Level: Waterproof
Water Resistant Mark: 33 ft
Shockproof: Yes
Fogproof: Yes
Length: 10.3 in
Width: 6 in
Height: 6 in
Weight: 17.3 oz
Finish: Matte
Package Type: Box
Additional Features: 4 Low Light Settings, 5 Daylight Settings
Included Accessories: Throw Lever
Battery Quantity: 1

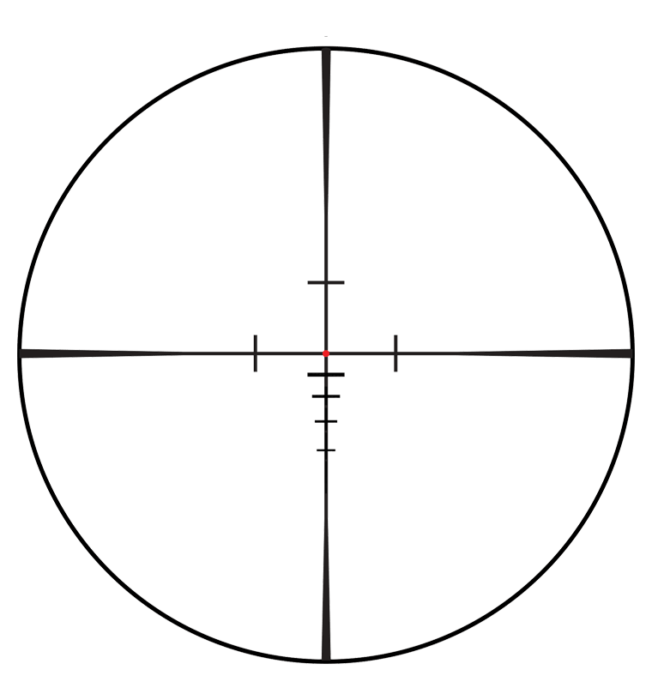

P3TR Reticle


Weight 40 oz
Dimensions 10 × 5 × 5 in
