Description
M-BRACE SCOPE RINGS 34mm

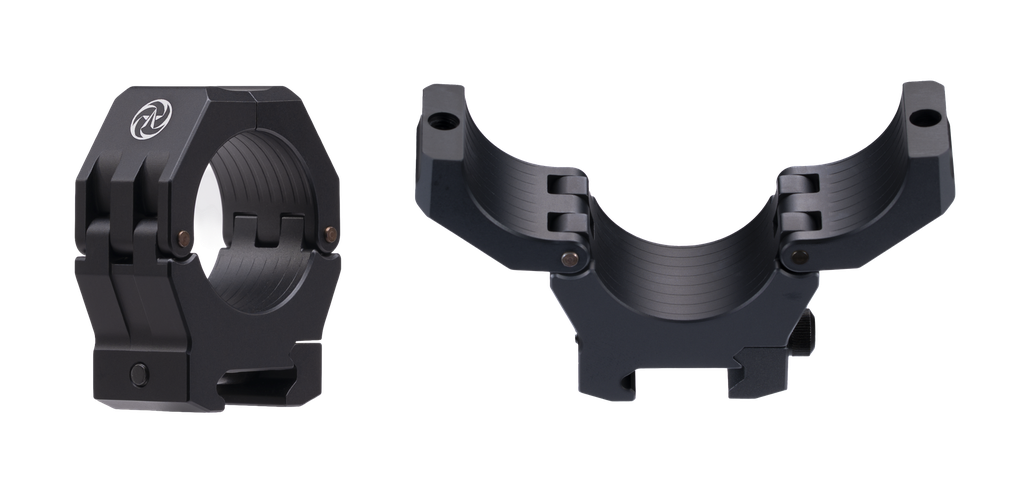

M-BRACE SCOPE RINGS 34mm is the ultimate scope mounting solution for your optics.
Even under the heaviest recoil, M-BRACE Rings hold firmly without marring or indenting the scope. These uniquely split rings maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.
M-BRACE Rings feature a rail interface which precisely and correctly engages rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.
Extremely strong, M-BRACE Rings are CNC machined from 7075 aluminum alloy and anodized for excellent corrosion resistance and a matte-black finish.
DIMENSIONS

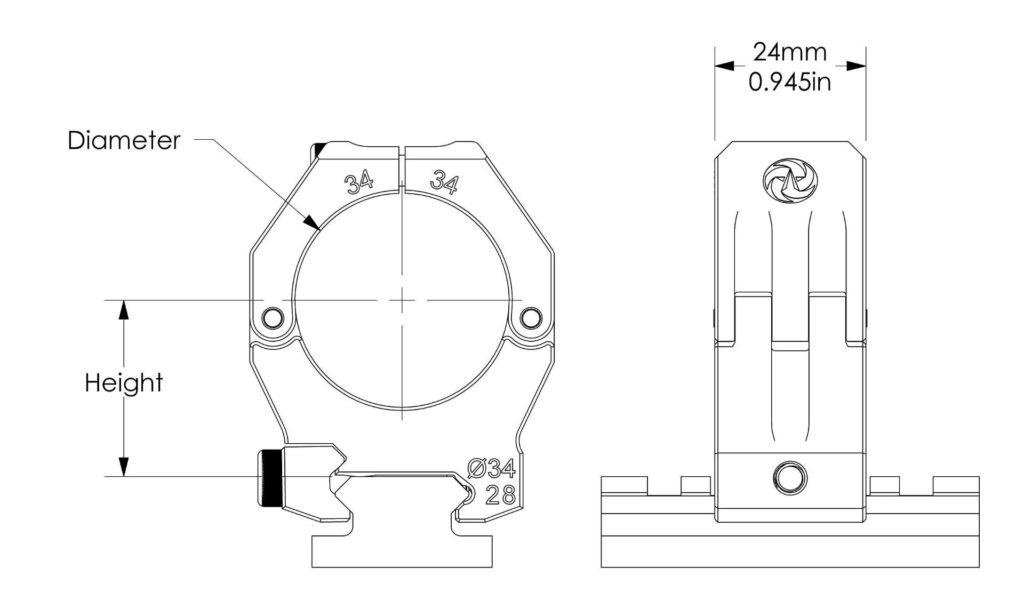

Height is measured from optical center to top of pic rail.

WEIGHT
Weight (ounces) and mass (grams) listed for sizes available.
Numbers are for a complete set with hardware weighed on a scale with 0.1 oz resolution.
| 1″ Diameter | 30mm Diameter | 34mm Diameter | 35mm Diameter | 36mm Diameter | 40mm Diameter | |
| 36mm Height (X-High) |
7.3 oz 208 g |
7.6 oz 216 g |
7.9 oz 223 g |
7.9 oz 224 g |
8.0 oz 226 g |
8.1 oz 230 g |
| 32mm Height (High) |
6.8 oz 194 g |
7.1 oz 201 g |
7.3 oz 207 g |
7.7 oz 219 g |
7.8 oz 220 g |
7.8 oz 220 g |
| 28mm Height (Med) |
6.3 oz 179 g |
6.9 oz 195 g |
6.9 oz 196 g |
6.9 oz 196 g |
6.9 oz 196 g |
6.9 oz 195 g |
| 24mm Height (Low) |
6.0 oz 171 g |
6.1 oz 173 g |
6.1 oz 173 g |
6.1 oz 173 g |
6.1 oz 173 g |
– |
| 20mm Height (X-Low) |
5.3 oz 150 g |
5.3 oz 151 g |
– | – | – | – |
