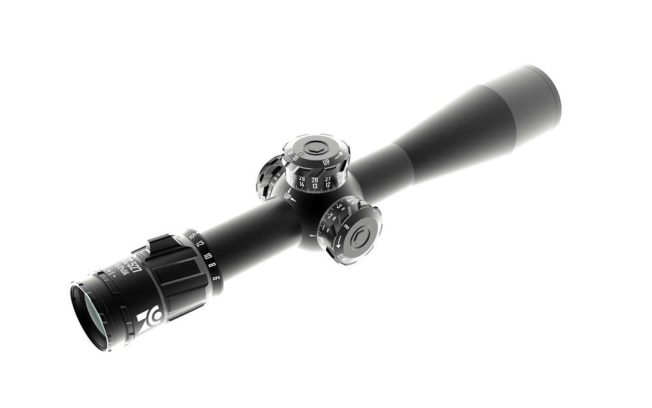

ZC 840 8-40×56 (MOA)

$4,150.00

Available on backorder

ZC 840 8-40×56 (MOA)

(Includes Free Pro Series Lever and Billet Level)

The ZC 840 8-40×56 (MOA) was purposefully designed for the long-range shooting enthusiast that demands the highest level of optical and mechanical performance. With a magnification range of 8-40X, a time proven 5X erector ratio delivers the needed magnification and superior optical performance. This optic delivers a higher magnification of 40X for the best view of the target and precise aiming for accurate shot placement. It includes our standard suite of ZCO features such as locking turrets and diopter, Advanced Illumination Management (AIM), and a finely tuned parallax that focuses down to 15 meters
for the ultimate in short-range precision. Shooters engaging in everything from NRL22 style competitions to Extreme Long-Range situations now have a top tier high-magnification optic that’s best suited to their specific shooting requirements.



ZC 840 8-40×56 (MOA) Specs

Magnification 8-40
Objective (mm) 56
Main Tube Diameter (mm) 36
Click Value (mils) 0.1
Elevation (mils) 28
Elevation Lock Yes
Windage (mils) 16
Windage Lock Yes
Field of View (ft/100 yd) 13.8 – 3.0
Field of View (m/100m) 4.6 – 1.0
Eye Relief 3.54 in / 90 mm
Parallax Compensation (m) 15 – infinity
Length 17.32 in / 440 mm
Weight 40.56 oz. / 1150g
Illumination Red/Green
Focal Plane First
Light Transmission (%) 92
Diopter -3 / +2
Exit Pupil (mm) 7.0 – 1.4



ZC 840 8-40×56 (MOA) Reticles

MPCT1, MPCT2,
MPCT3X, MOA,
Tremor5

Check out our mounting options here

Find out more from ZCO



Weight 80 oz
Dimensions 15 × 5 × 5 in
