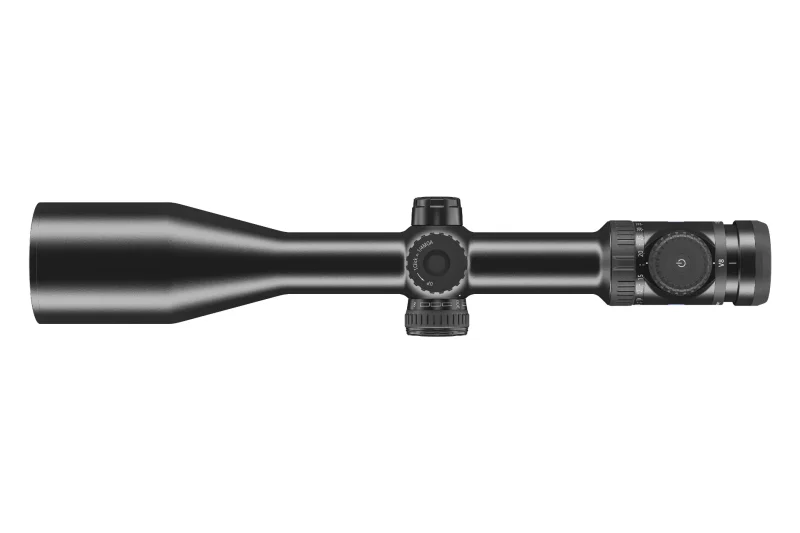

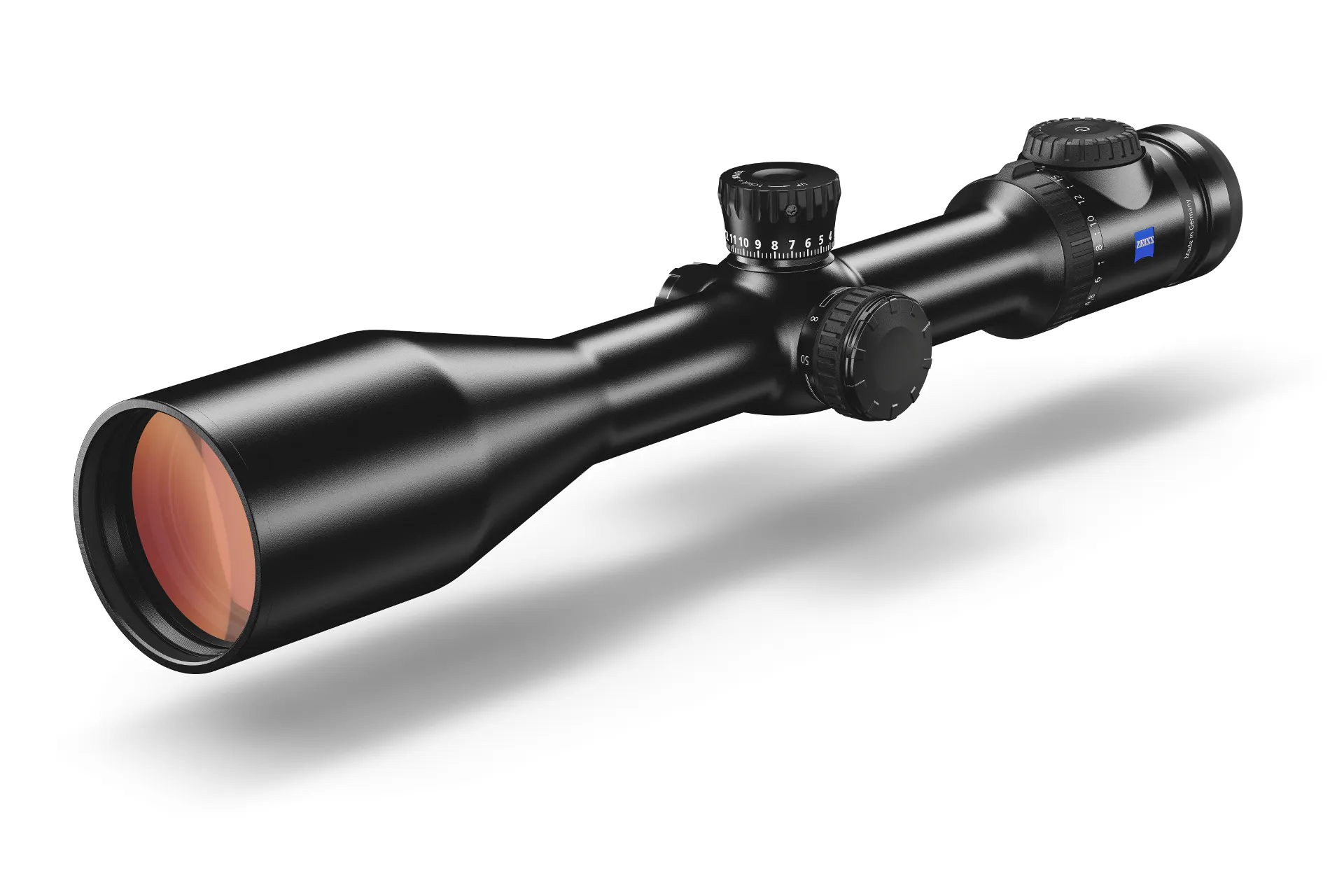

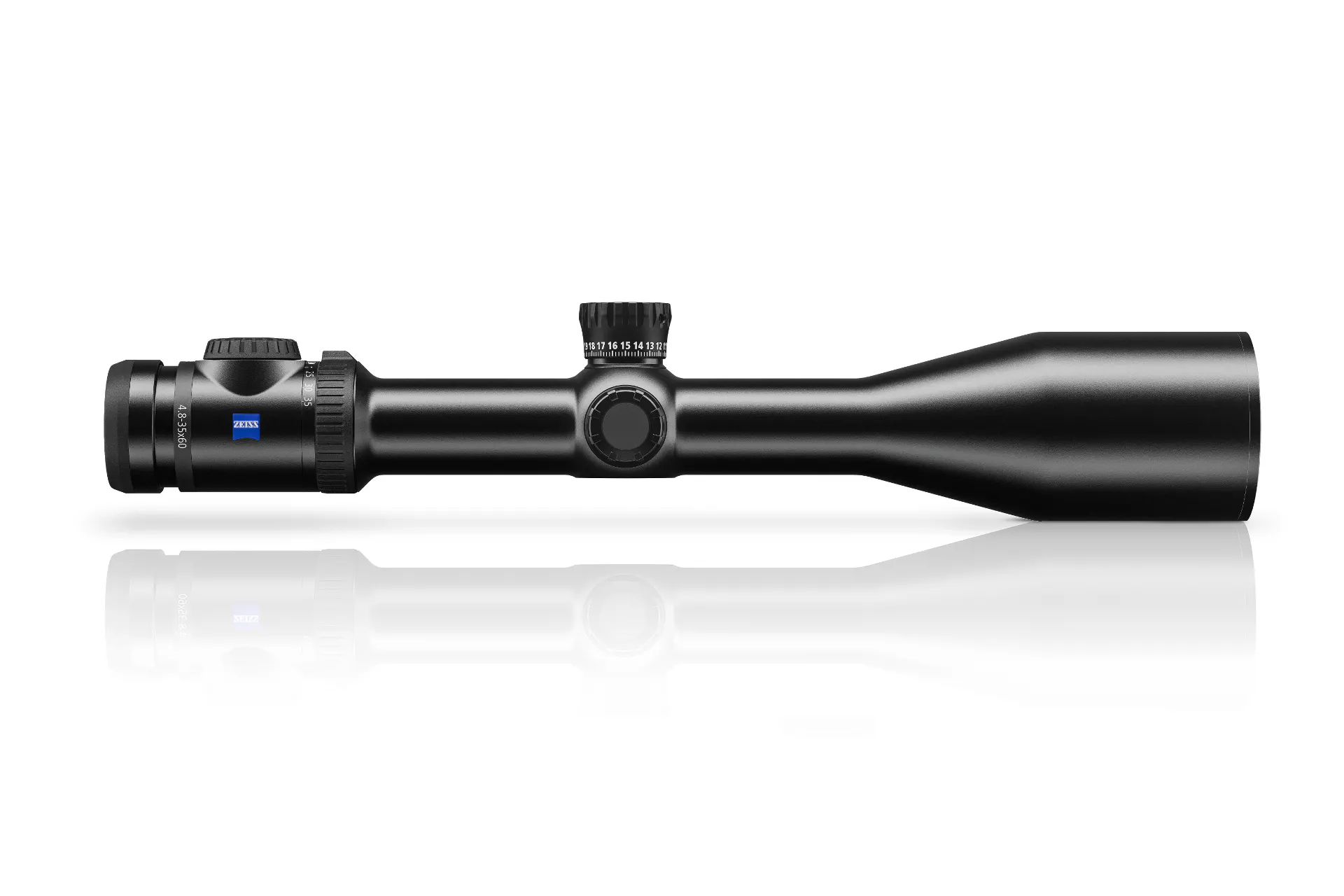

V8 4.8-35×60 NA AHR Reticle 90 Illuminated
German design, engineering, manufacturing, and ultimate craftsmanship comes to life in the sophisticated V8 4.8-35×60 NA AHR Reticle 90 Illuminated scope with a highly advantageous 8x zoom ratio. The distinctly innovative optics utilize exotic glass types, from SCHOTT glass, consisting of multiple FL (fluoride) and HT (high-transmission) lens elements. The optical system yields an impressively bright image, with a guaranteed light transmission value of 92%. An immediate advantage of these designs is the extra-large eye box that allows for faster target acquisition.
ZEISS’ benchmark model of the V8 product line. With up to 35x magnification the V8 4.8-35×60 NA offers the ultimate in long-range target identification and truly extends long-range hunting capabilities. The optical system offers most excellent detailed image resolution throughout the entire 35x range.
MOA Settings
- V8 NA comes with MOA settings
- Click value equals ¼ MOA for elevation and windage
Multi-Turn External Turret
- Allows full elevation travel range, multiple rotations
- Ballistic Stop
Engravings
- Large and bold MOA numerical engravings
- Space above the existing engravings can be customized for ballistic engravings
V8 4.8-35×60 NA AHR Reticle 90 Illuminated Features
Quality Made in Germany
A high-quality German riflescope offering precision, exceptional optics, durable construction, and advanced features, ensuring accuracy and reliability for serious marksmen.

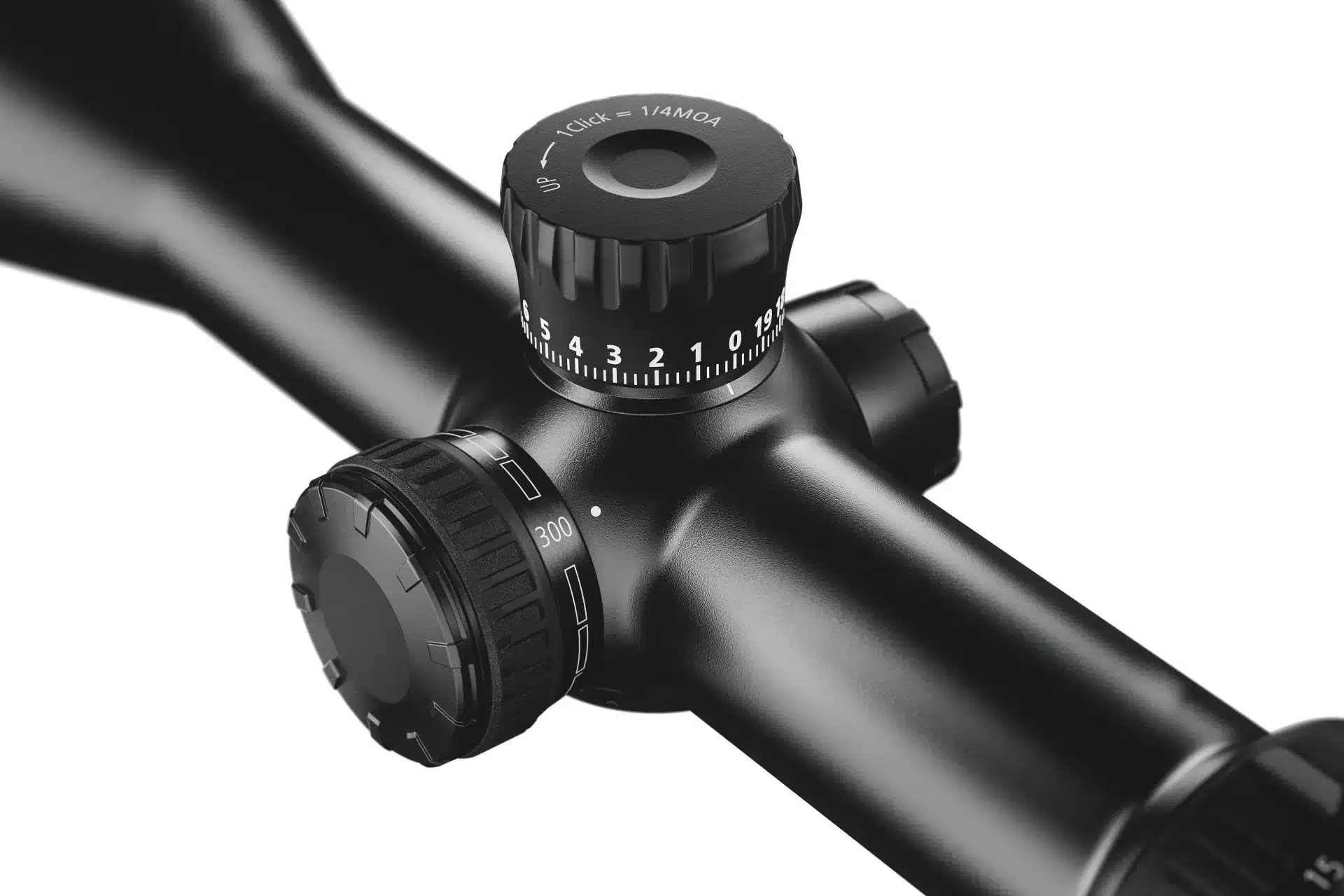

Precision Rifle Turrets with 0.25 MOA click-value
Our precision turrets are engineered for those who demand the highest level of accuracy and control. With a 0.25 MOA (Minute of Angle) click-value, these turrets allow for meticulous adjustments to ensure your shots are perfectly on target. Turret clock-wise rotation equals down for elevation and left for windage.
Light resources even at dusk
ZEISS has always been synonymous for bright, high-contrast optics. The modern and sophisticated optical designs enhanced by the ZEISS T* multi-coating enables our V8 riflescopes to achieve light transmission of up to 92%. The twilight capabilities are even further improved by the 56 mm objective lens providing the perfect solution for hunting in low light conditions – including darkness.
Advanced long-range bullet drop compensation
With an elevation adjustment range of up to 140 cm, and a click value of 1cm/100m per click, the bullet drop compensation ASV-Advanced Long Range (ASV-ALR) allows for precise sight corrections for precise shot placement at long-range.
35x Magnification
The 35x magnification combined with the bullet drop compensation (ASV) stands for ultimate long-range shooting capability – and success. The riflescope provides consistently excellent image sharpness while yielding the highest resolution of details from minimum to maximum magnification settings. This allows for utter-most reliable target identification, shot confirmation, and ultra-precise shooting over the longest distances.
The world’s finest illuminated dot
The secret behind the precision of ZEISS riflescopes is their ultra-fine illuminated dot and its extremely low target coverage. With only a fraction of the thickness of a human hair, the fibre optics system delivers the world’s finest illuminated dot – 3.3-millimetre target coverage at 100 metres is the breathtaking result (V8 & V6 @20x). Pure precision for the smallest targets and the greatest distances.
Brilliant image quality
The Ultra-FL Concept contains several SCHOTT fluoride glass elements for absolute color fidelity, brightness, and clarity. Ensuring you the finest resolution of details, even in the harshest conditions and most challenging environment.
ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
A clear view, whatever the weather
There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
Stable and Shot-Proof
The ZEISS V8, ZEISS Victory HT, ZEISS Conquest V6, and ZEISS Conquest V4 riflescopes are all ideally suited for use with “clip-on” attachments.
Multifunction Button
The multifunction illumination control button is the most advanced reticle illumination system on the market. It can be quickly, silently, and intuitively operated even with gloves on. The illumination is automatically deactivated as soon as you put the weapon down. It reactivates as soon as you take aim, a feature that saves time and energy – and ensures an immediate and perfect aiming solution in any lighting condition.
The most versatile riflescope
The combination of maximum zoom range, the brightest optics and optimal ease of use makes the ZEISS V8 the ultimate all-purpose riflescope for all distances and situations – whether you are on a driven hunt, stalking, high seat hunting, or shooting at long-range. Whatever your hunting venture, the ZEISS V8 – the company’s best super-zoom riflescope – enables fast reactions and maximum flexibility. Designed to ensure maximum hunting success.
V8 4.8-35×60 NA AHR Reticle 90 Illuminated Specs
Performance
| Magnification | 4.8 – 35 × |
| Effective lens diameter | 48.1 – 60 mm |
| Light transmission | 92% |
| Exit pupil diameter | 9.9 – 1.7 mm |
| Twilight factor | 13.6 – 45.8 |
| Field of view at 100 m (yds) | 8.6 – 1.2 m (26 – 4 ft) |
| Objective viewing angle | 4.9° – 0.7° |
| Diopter adjustment range | − 3.5 | + 2 dpt |
| Eye relief | 92 mm (3.6 “) |
| Parallax setting | 50 m – ∞ (54 yds – ∞) |
| Vertical adjustment range at 100 m | 140 cm |
| Lateral adjustment range at 100 m | 85 cm |
| Adjustment per click at 100 m | 0.25 MOA |
| Centre tube diameter | 34 mm |
| Eyepiece tube diameter | 46 mm |
| Objective tube diameter | 67 mm |
Features
| LotuTec | Nitrogen filled | + | + |
| Water resistance | 400 mbar |
Physical
| Operating temperature | − 25°C | + 50°C (− 13°F | + 122°F) |
| Length | 399 mm (15.7 “) |
| Weight (without inner rail) | 995 g (35.1 oz) |
| Weight (with inner rail) | 1015 g (35.8 oz) |
V8 4.8-35×60 NA AHR Reticle 90 Illuminated Reticle
